04. VPC Networking Fundamentals

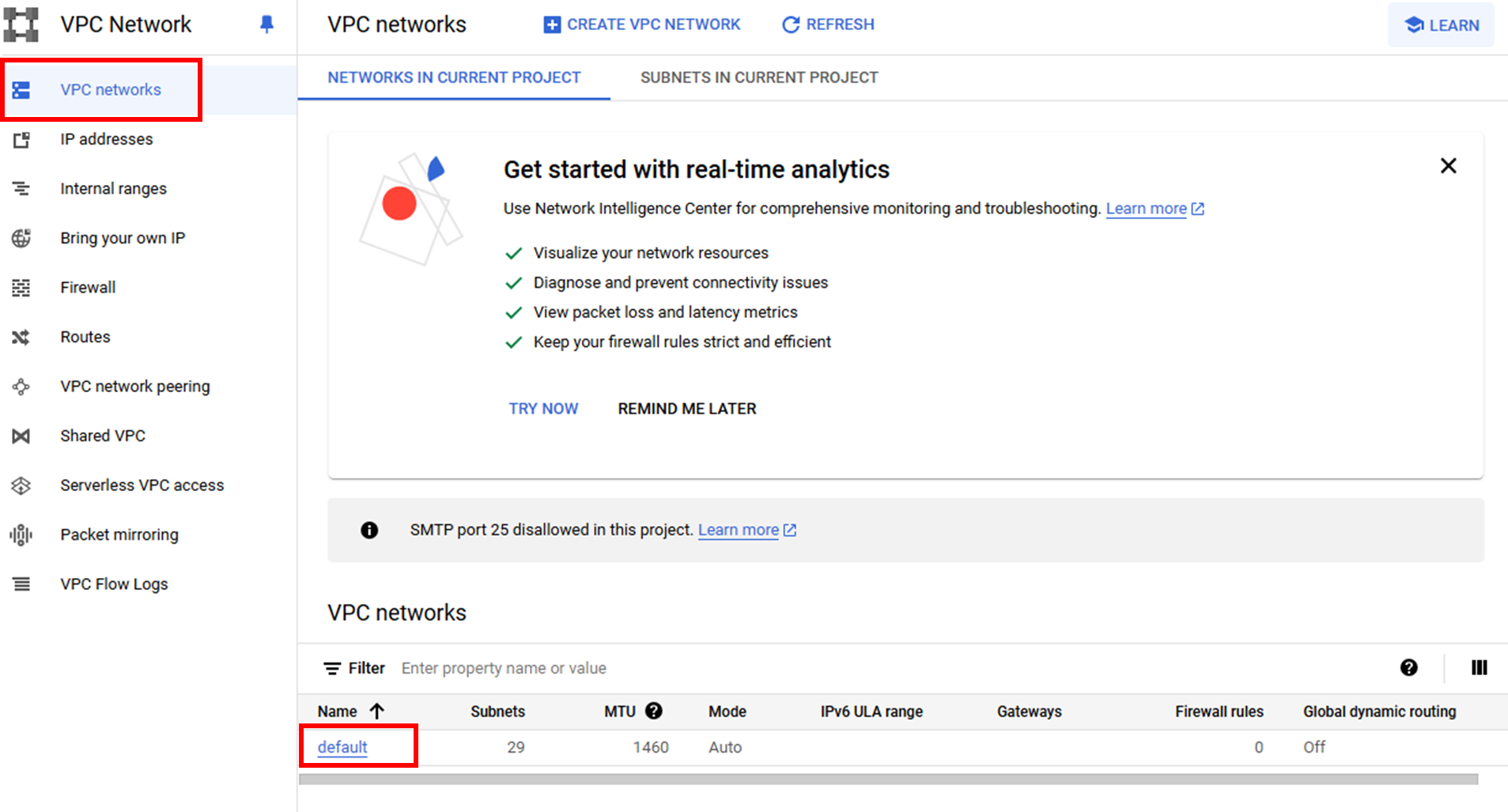

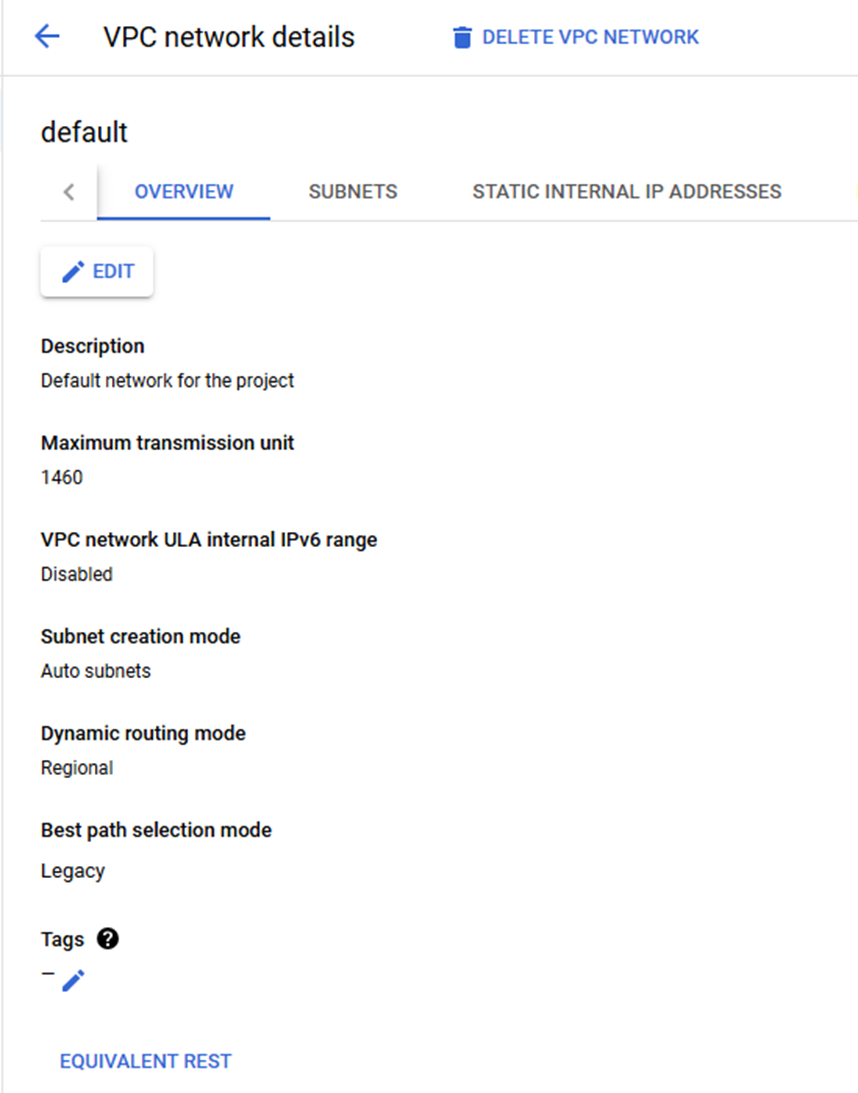

Task 1. Explore the default network

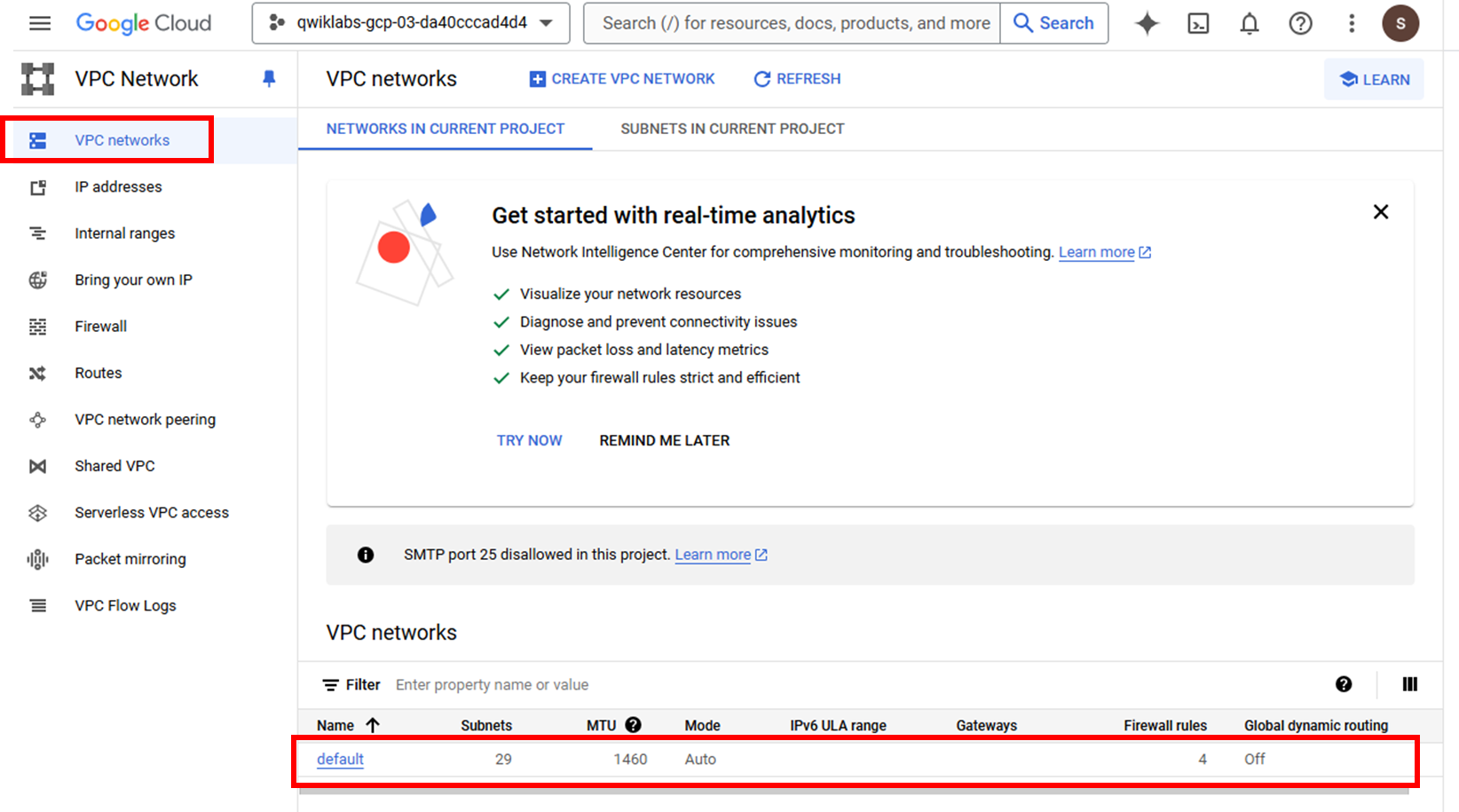

View the subnets

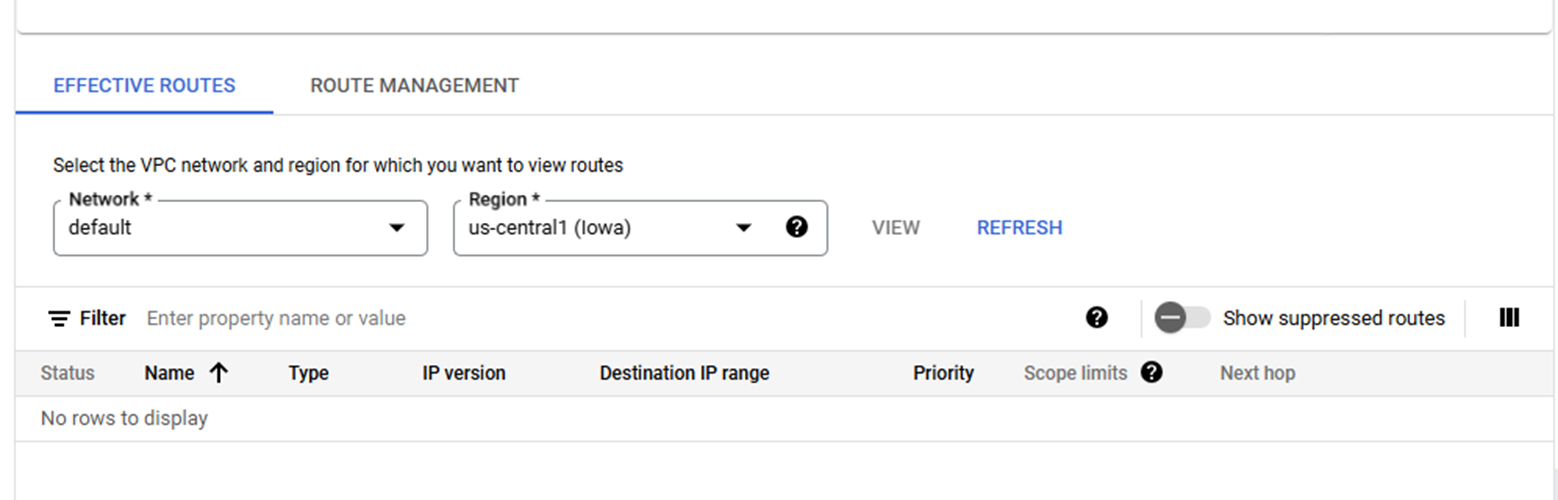

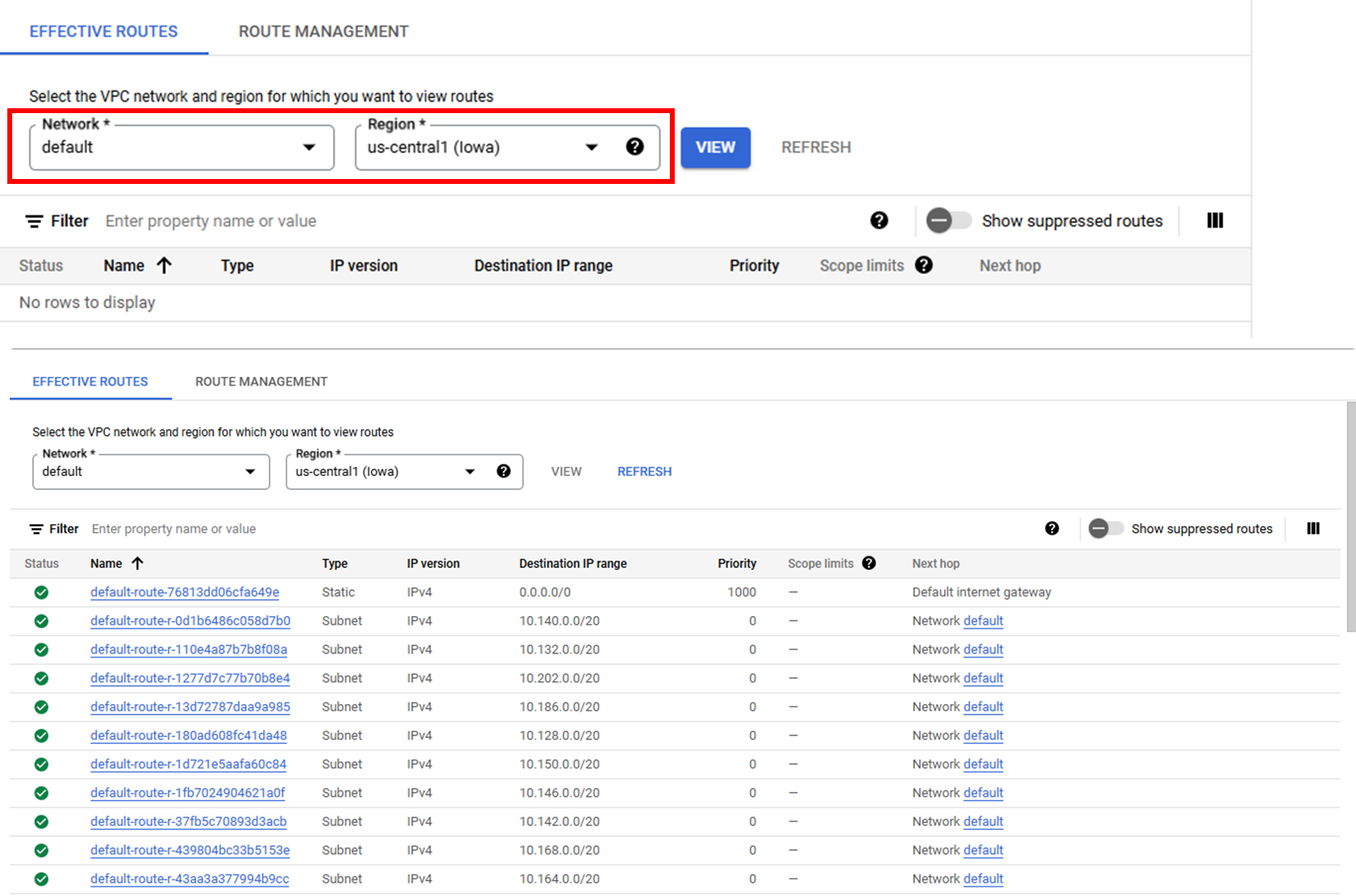

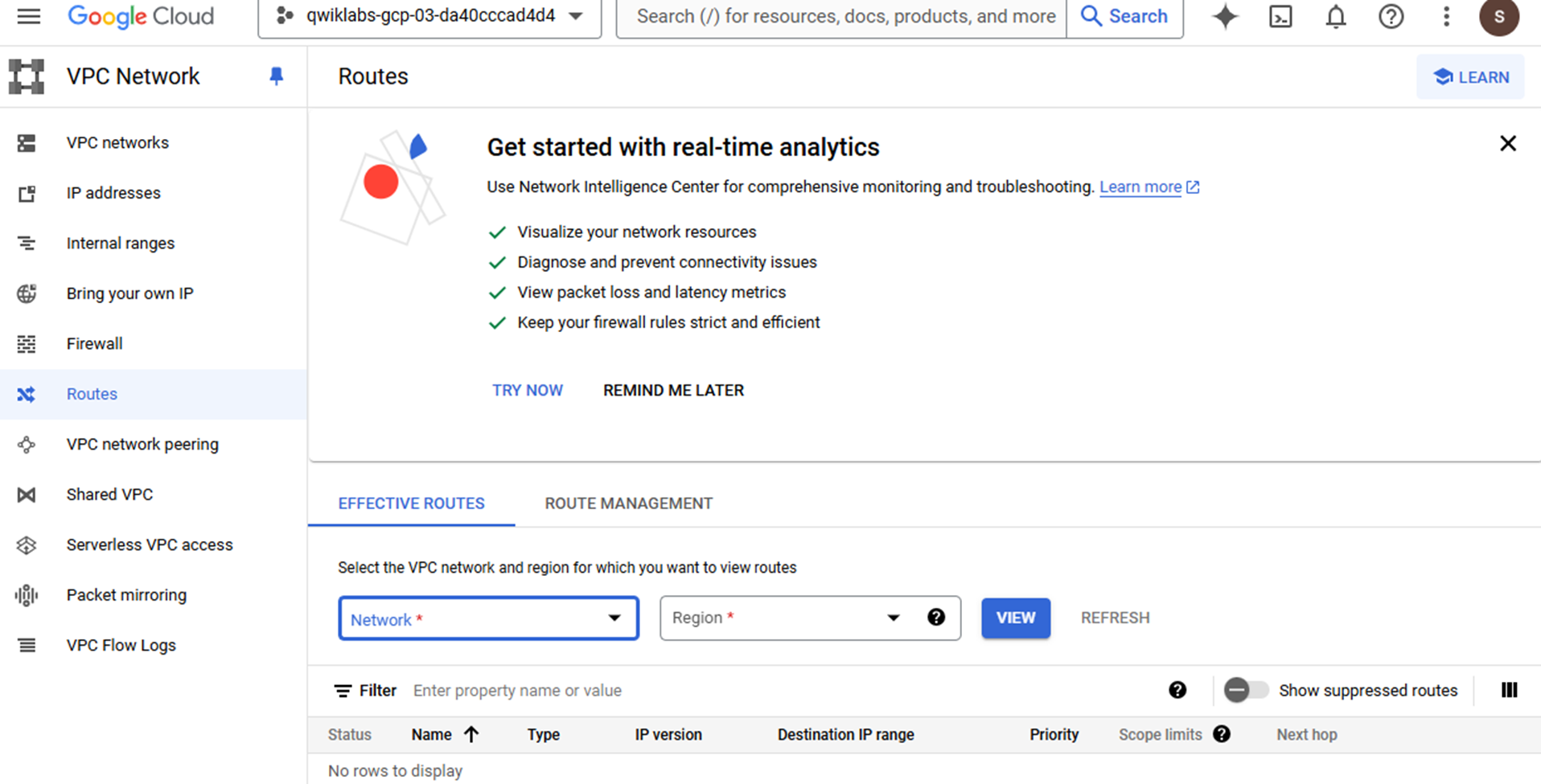

View the routes

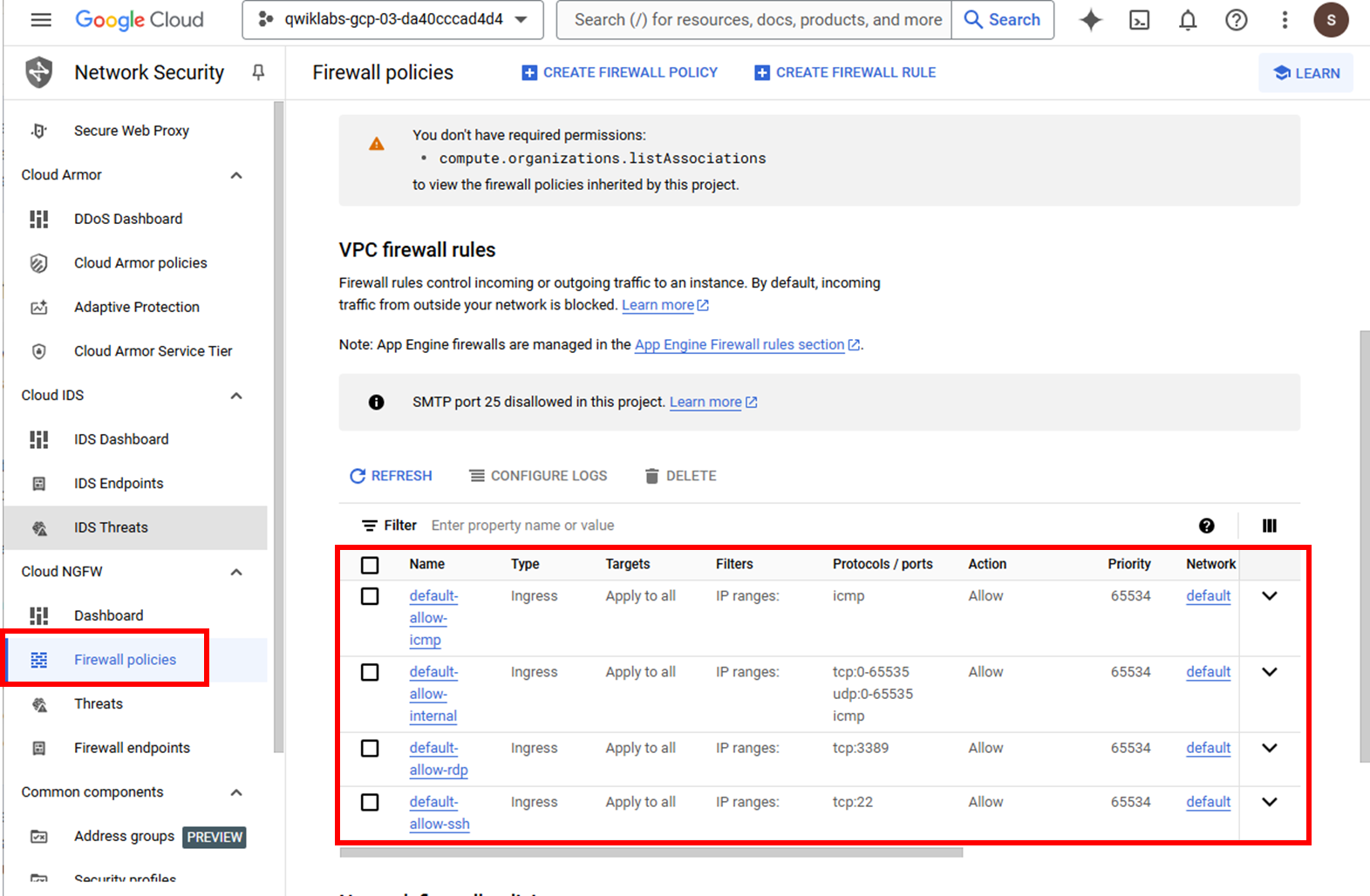

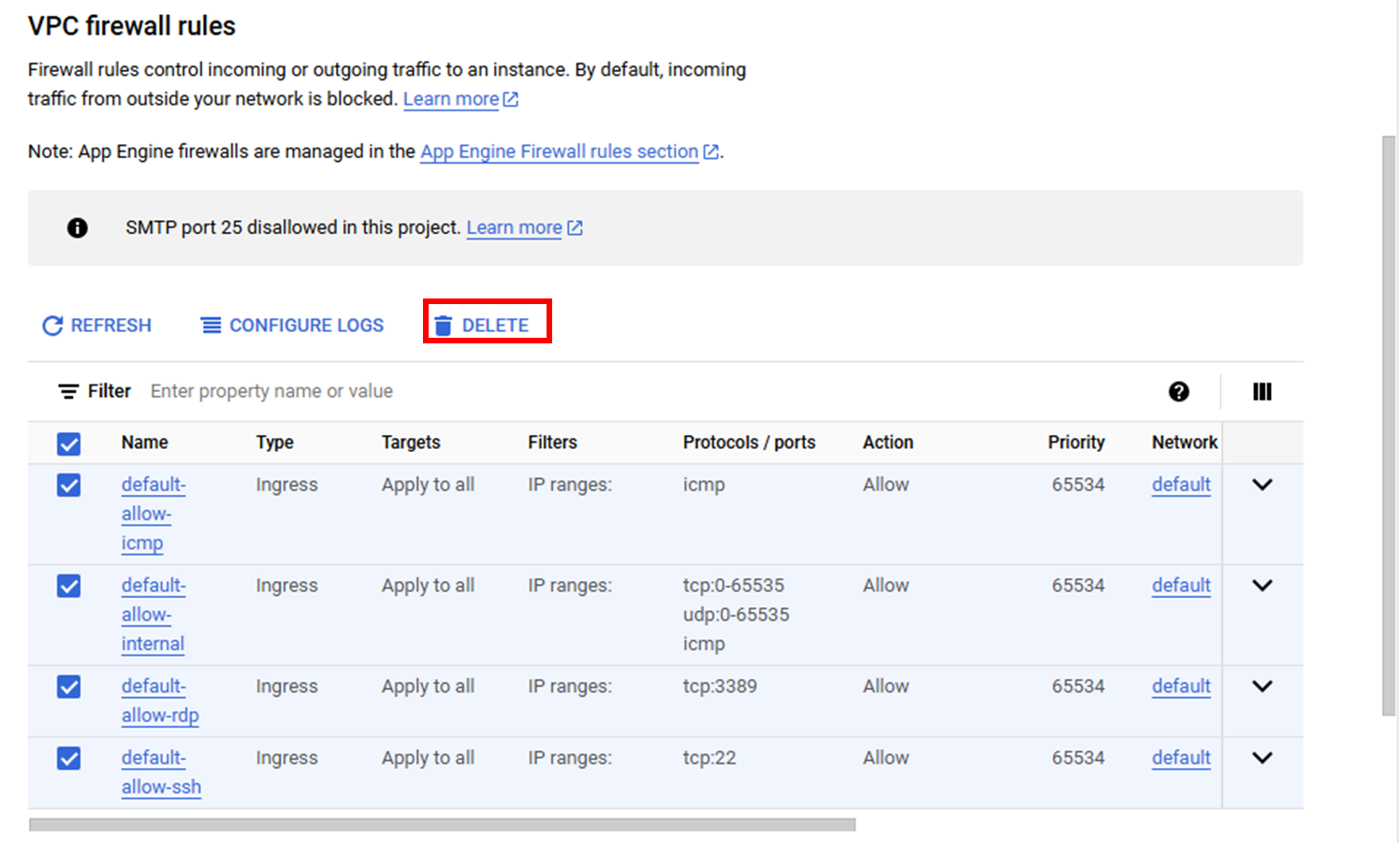

View the firewall rules

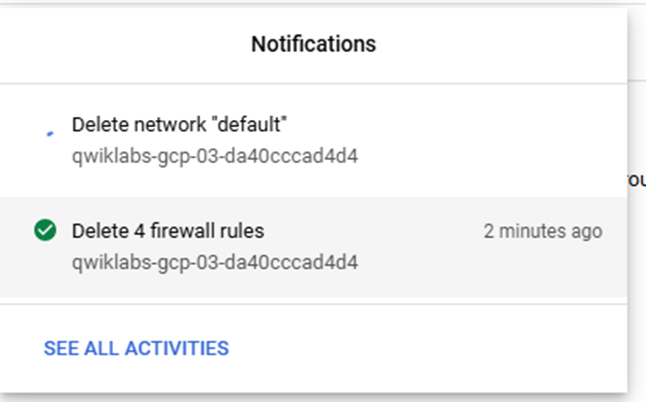

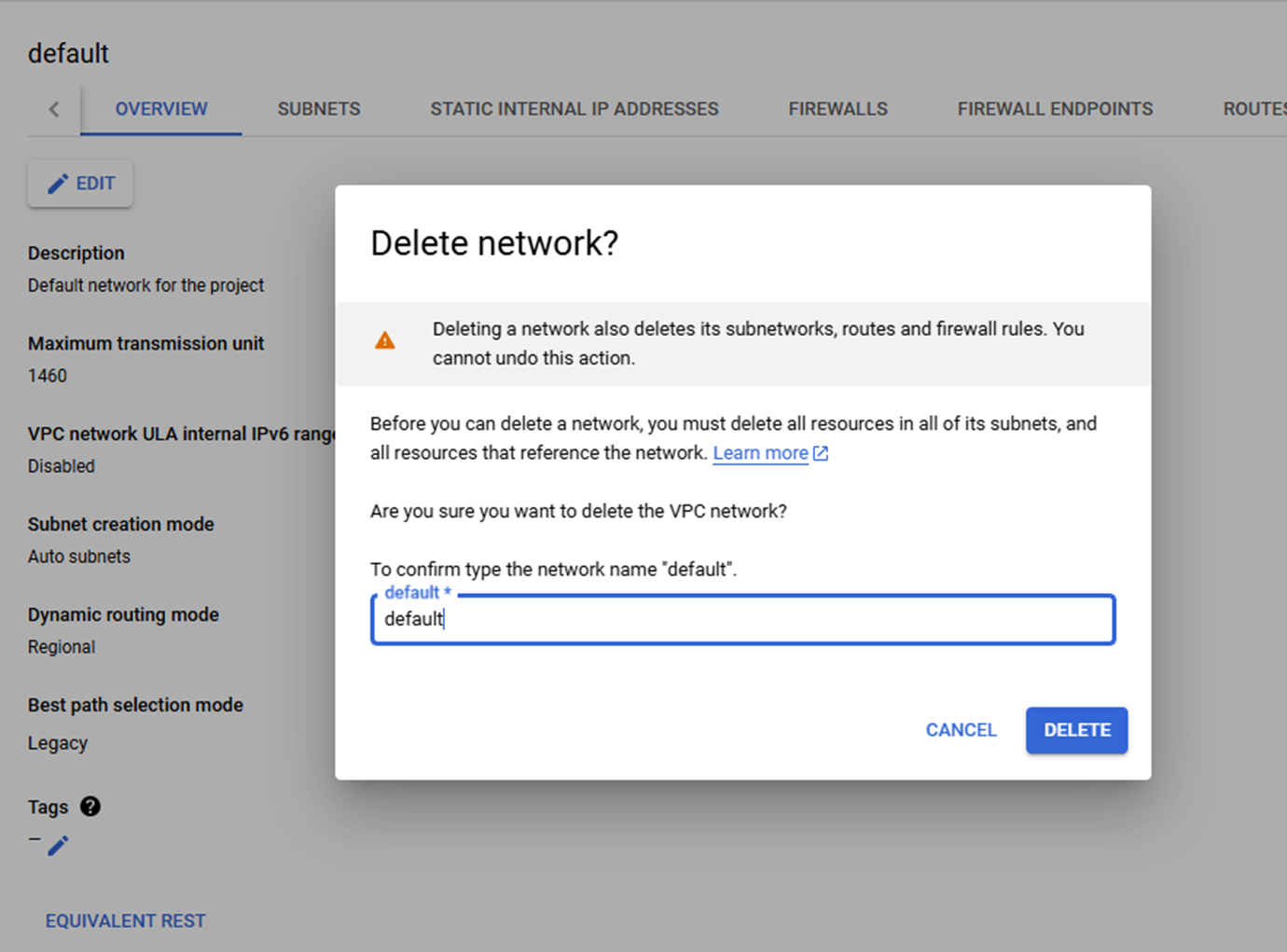

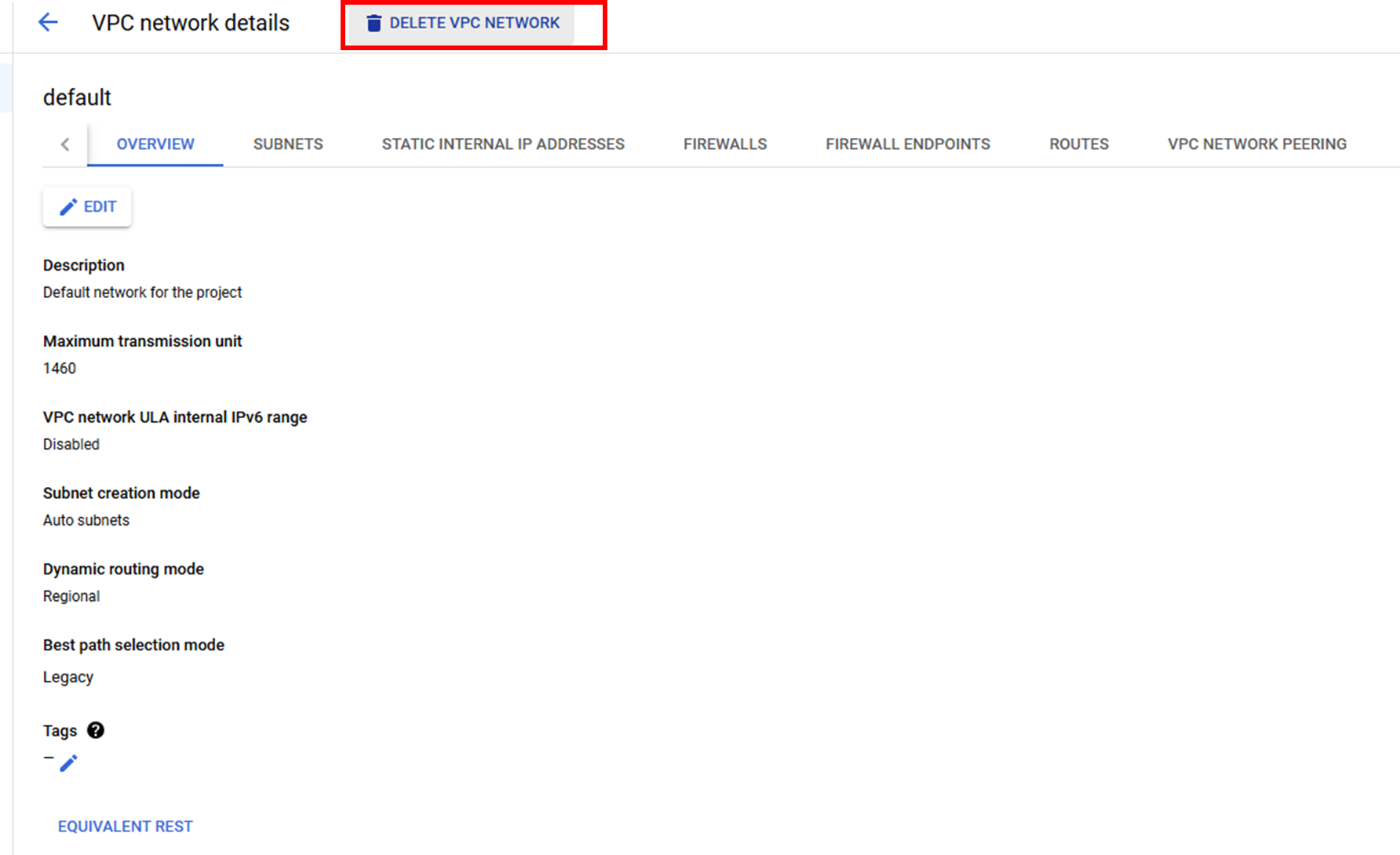

Delete the default network

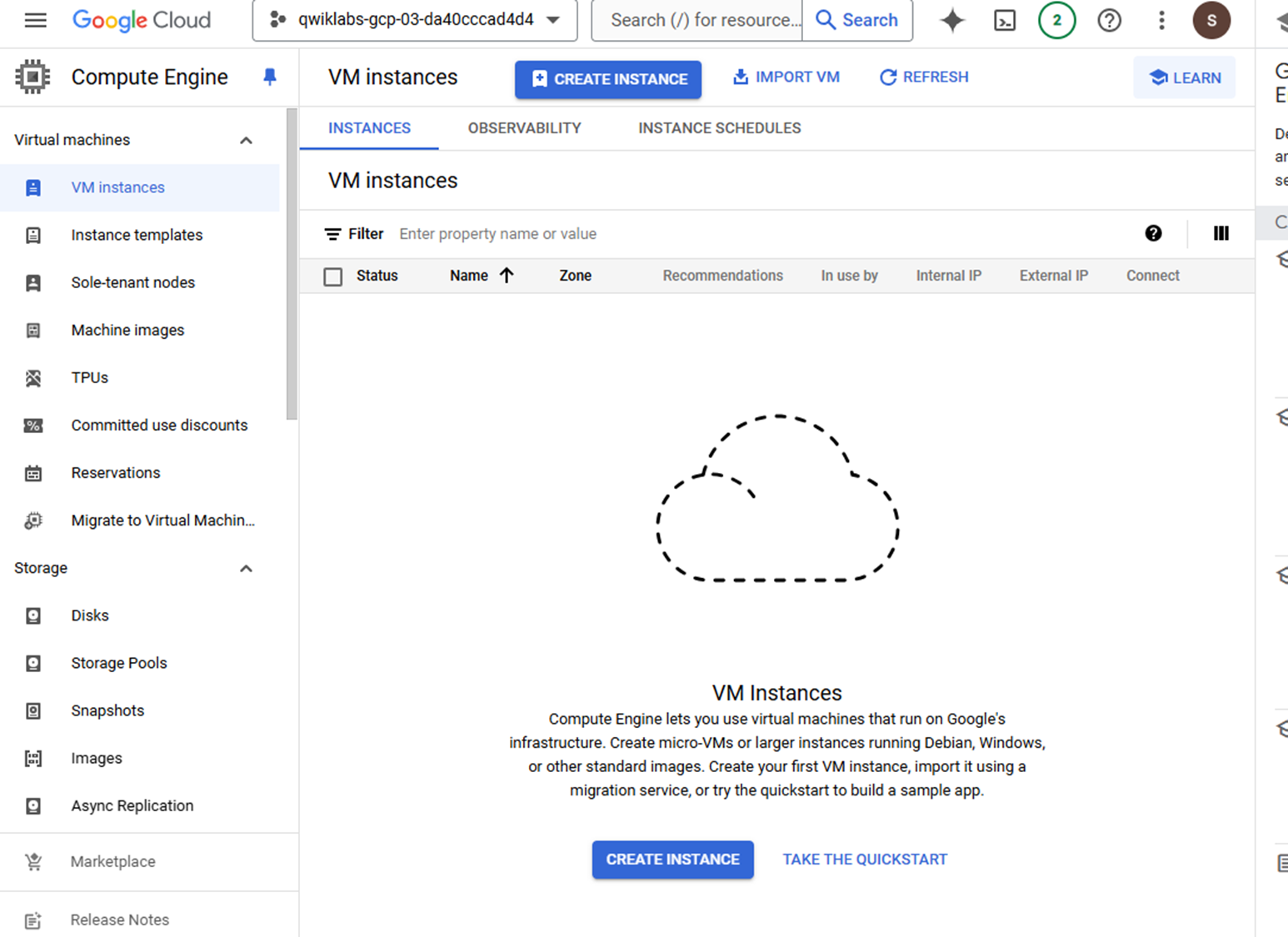

삭제된 것 확인

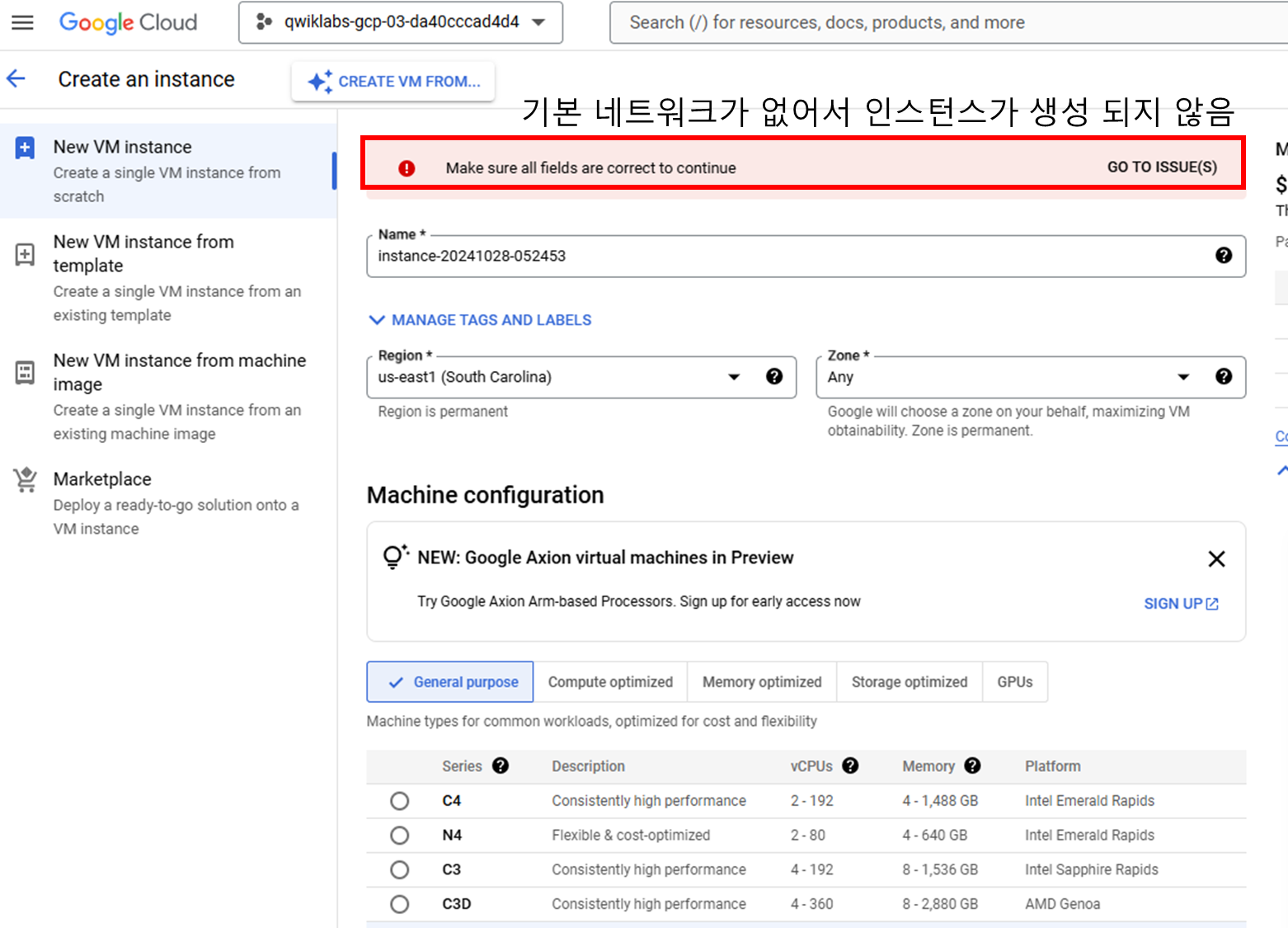

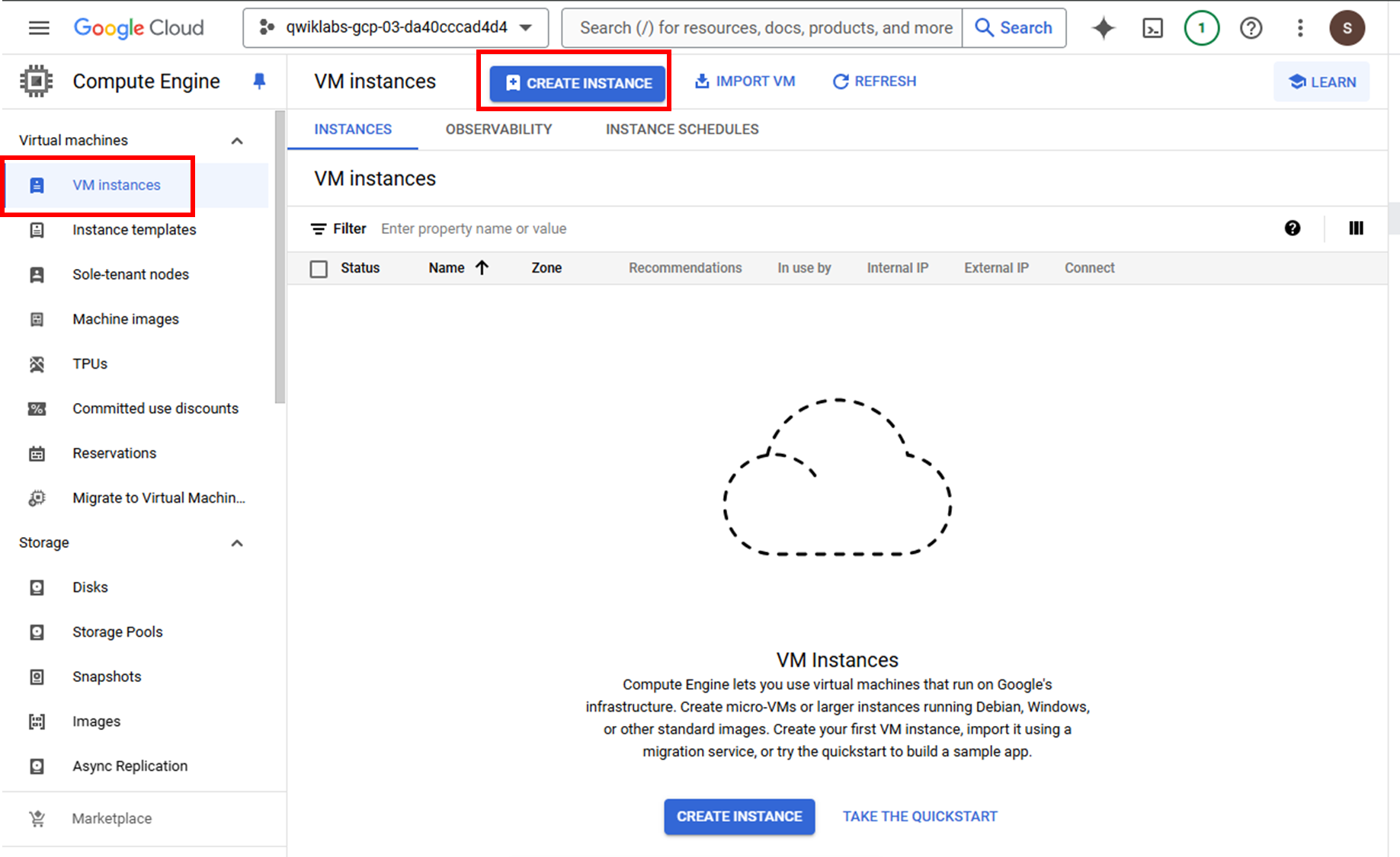

삭제 된 채로 인스턴스 생성 시도



Task 2. Create a VPC network and VM instances

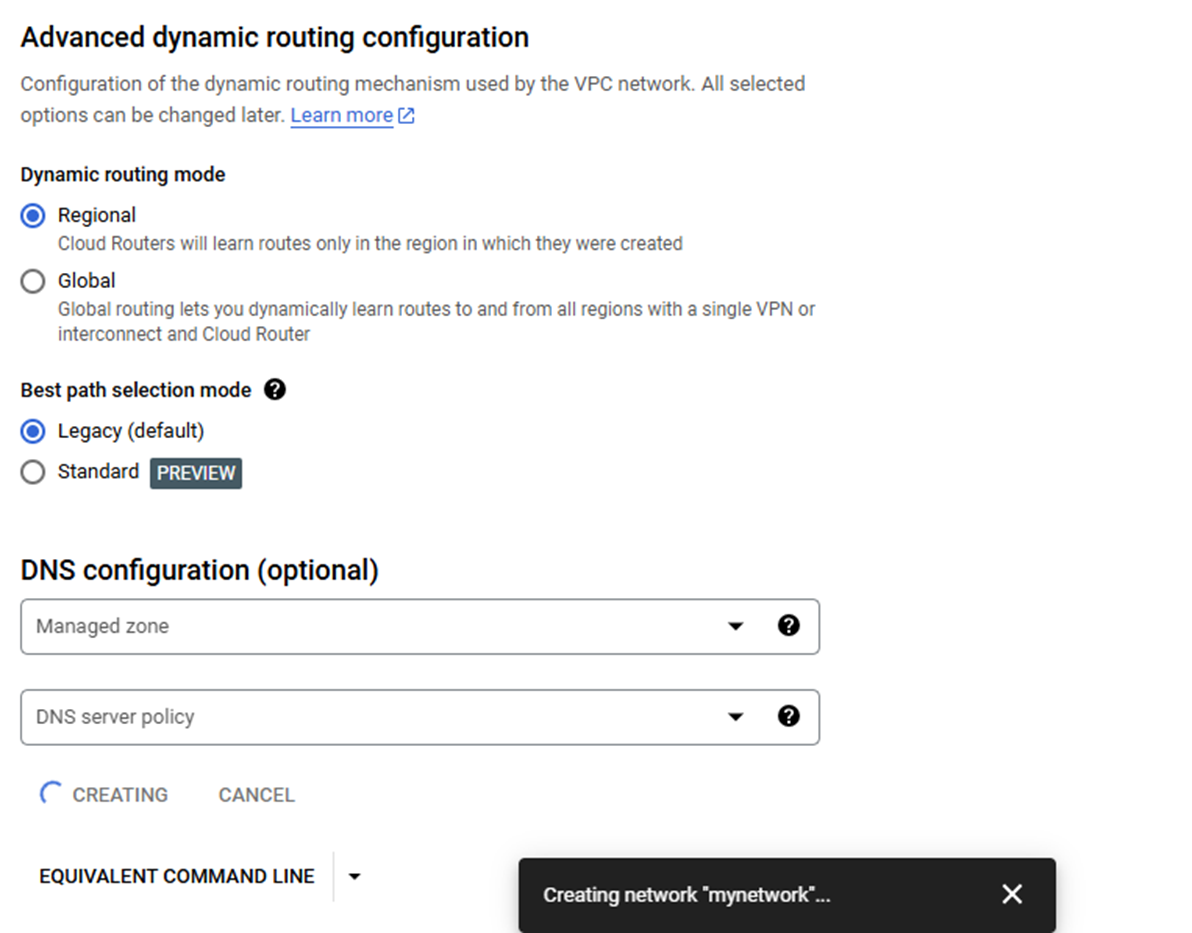

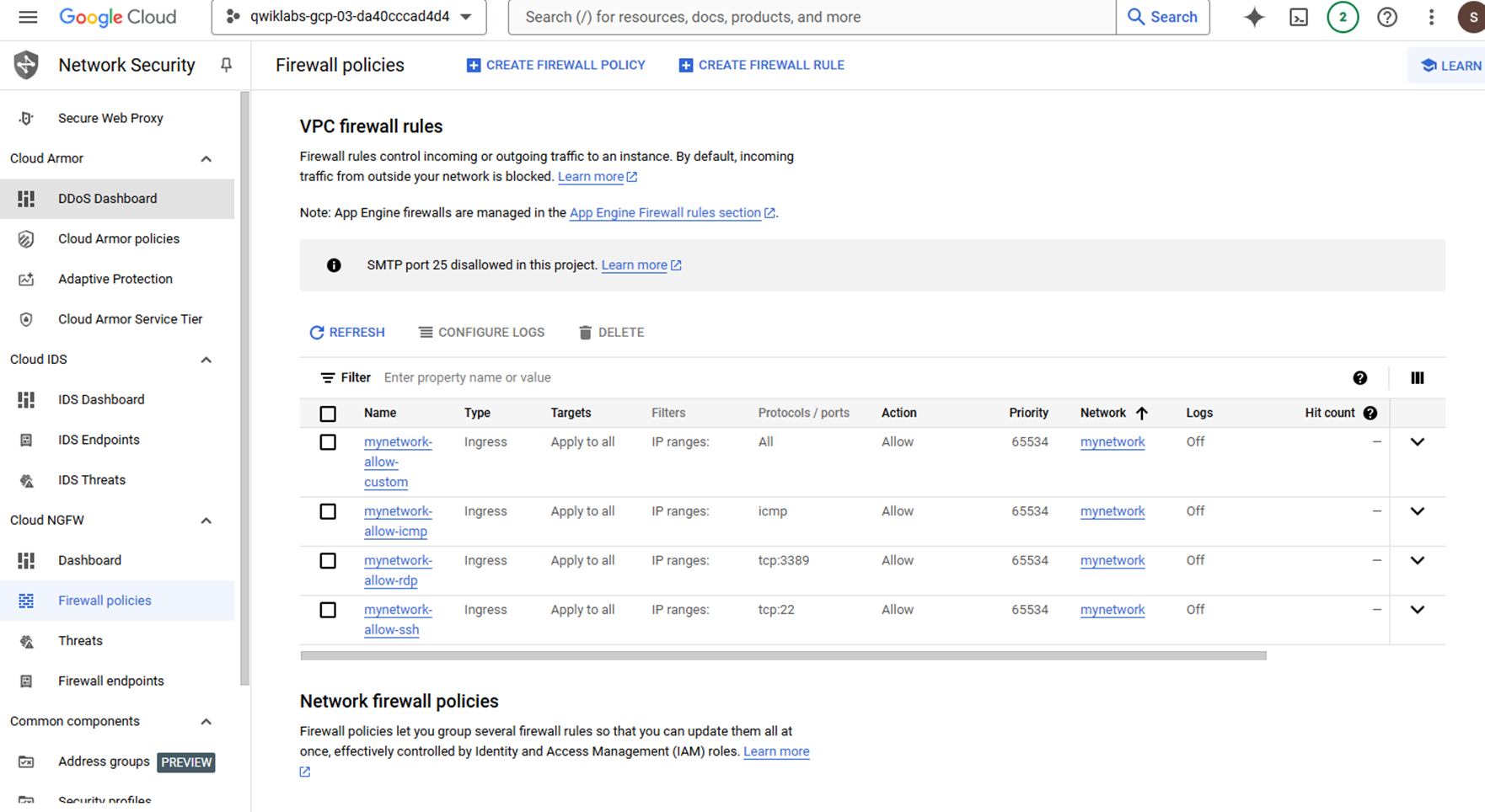

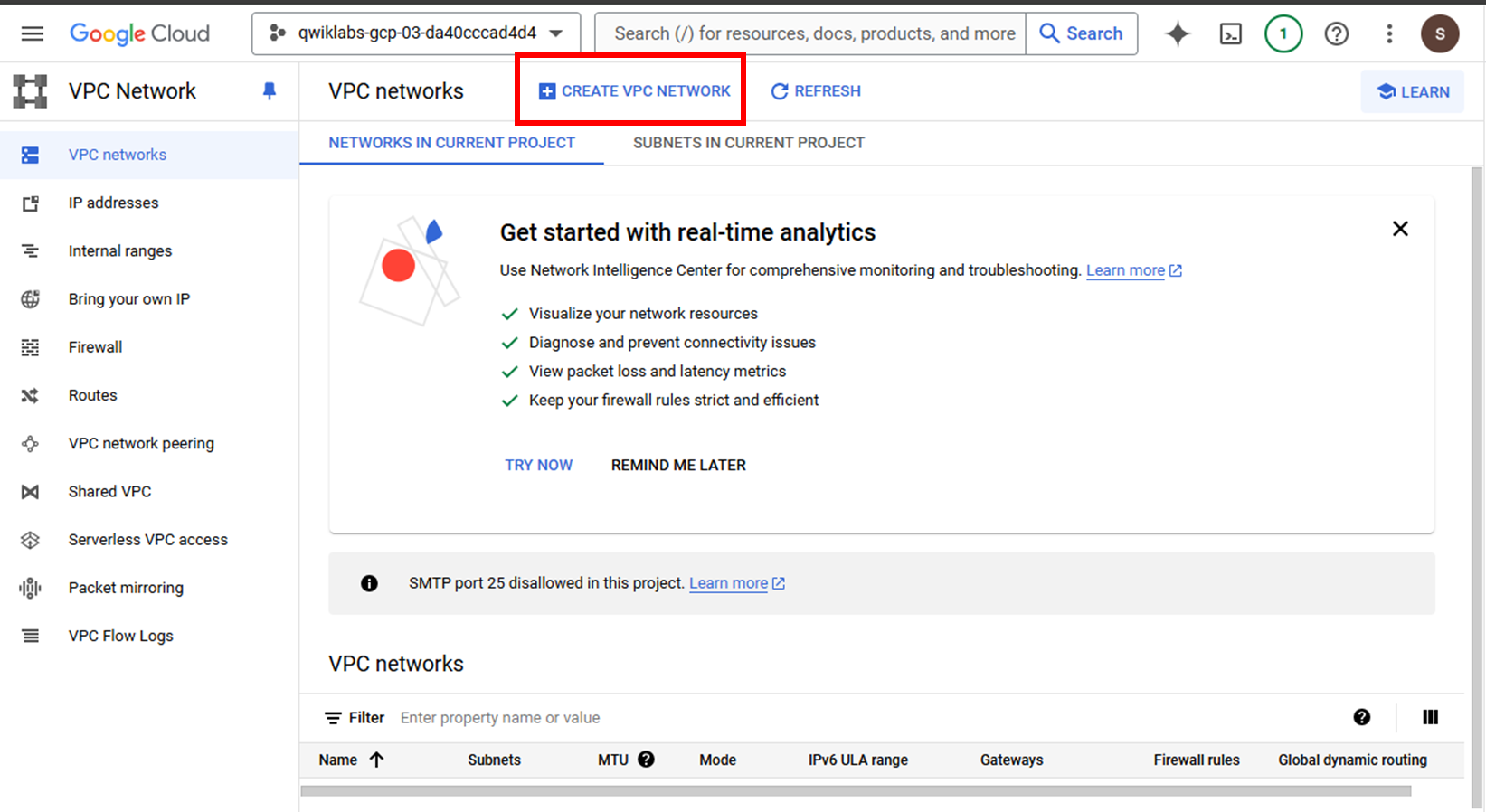

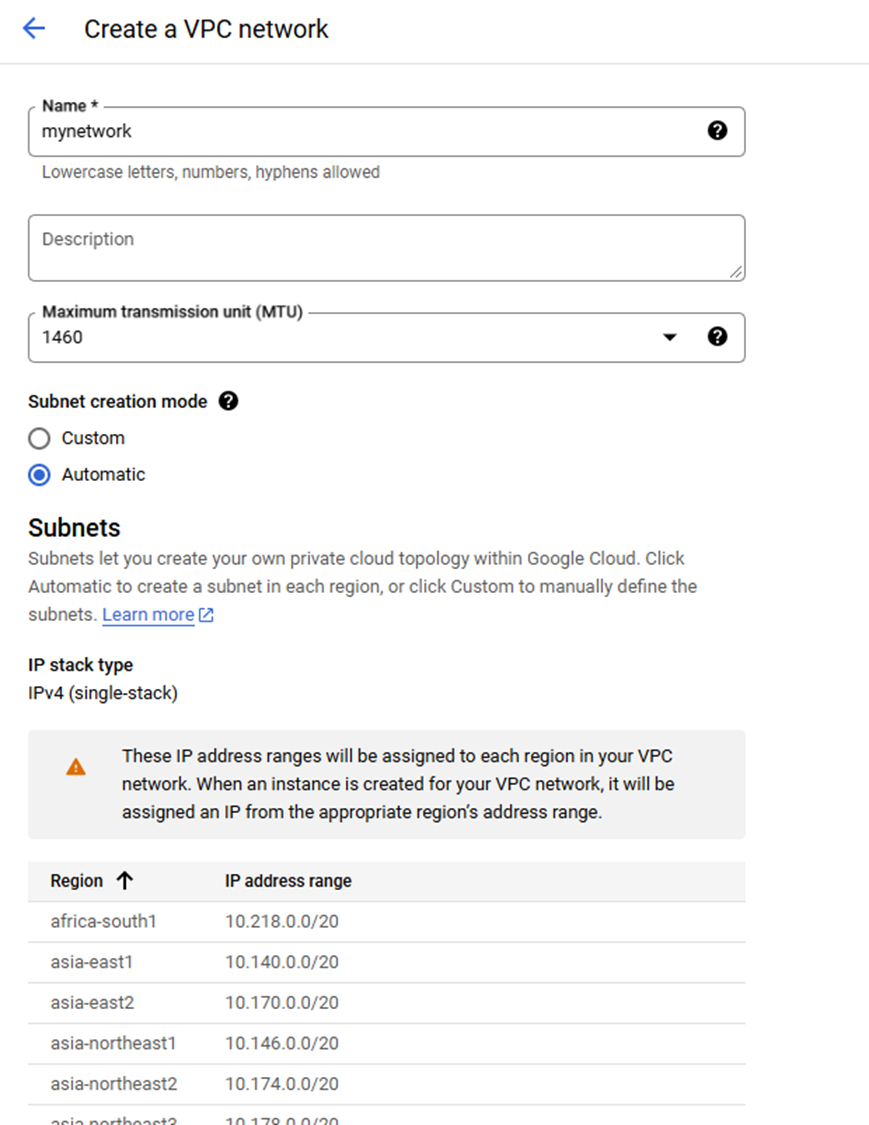

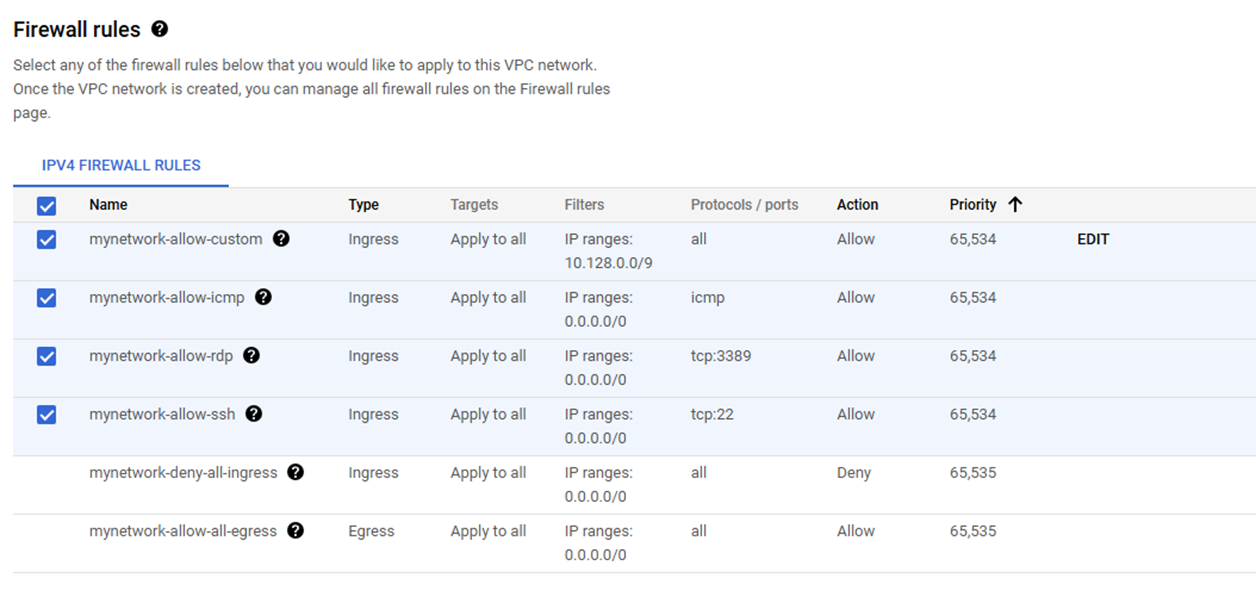

Create an auto mode VPC network with Firewall rules

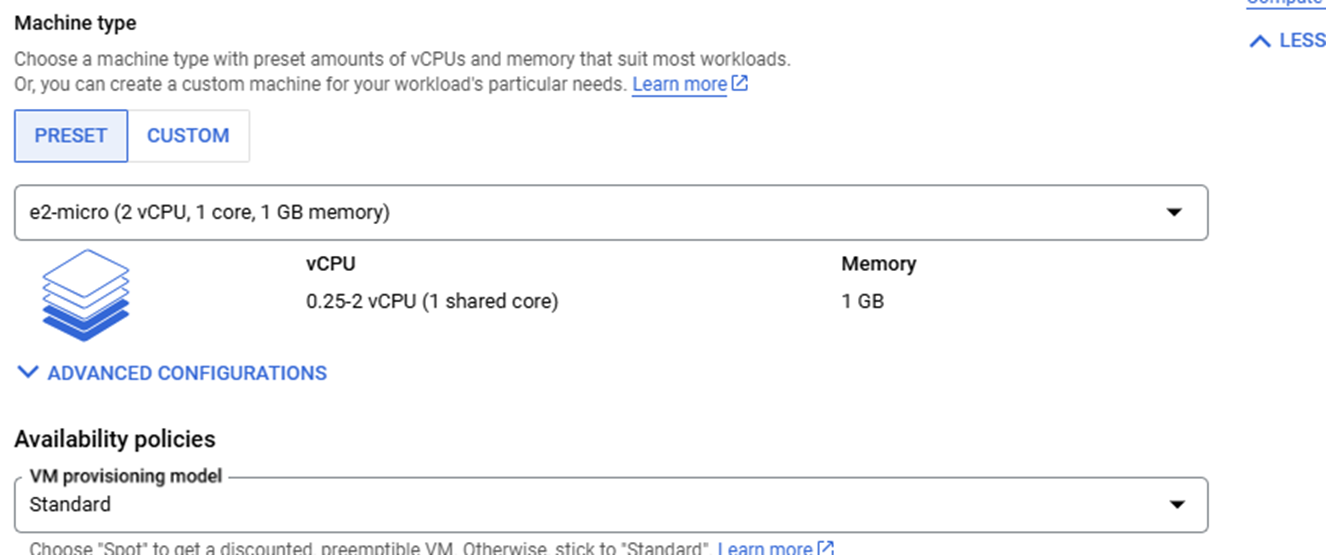

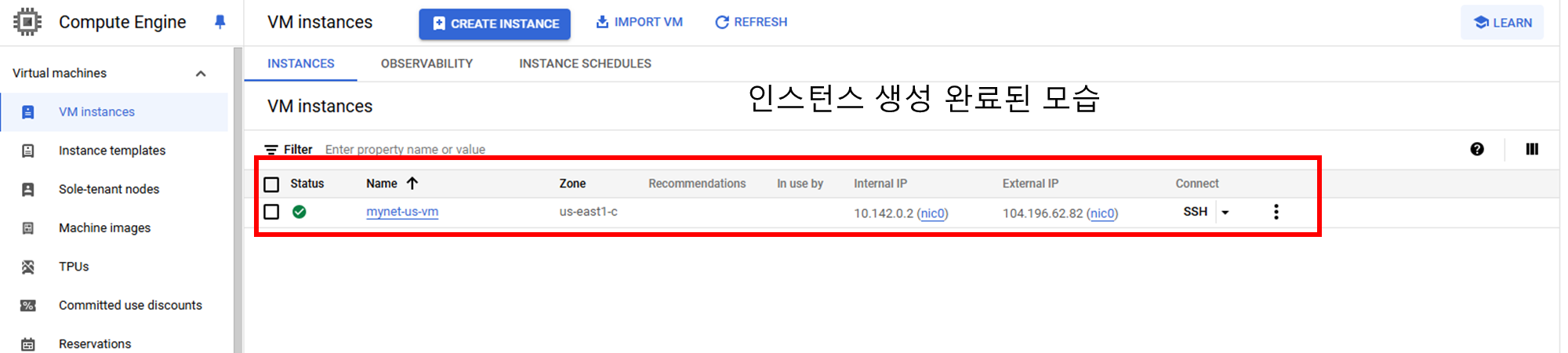

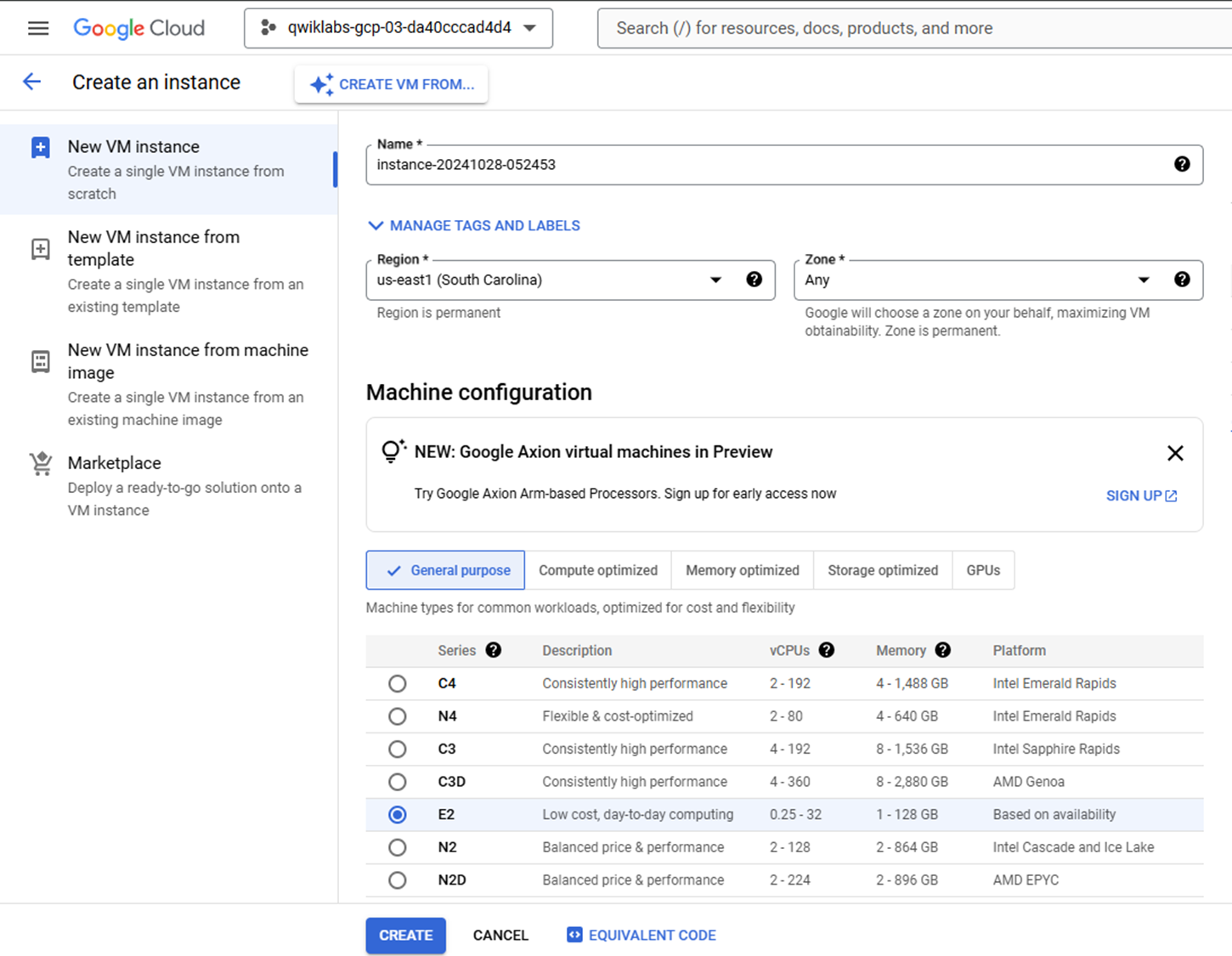

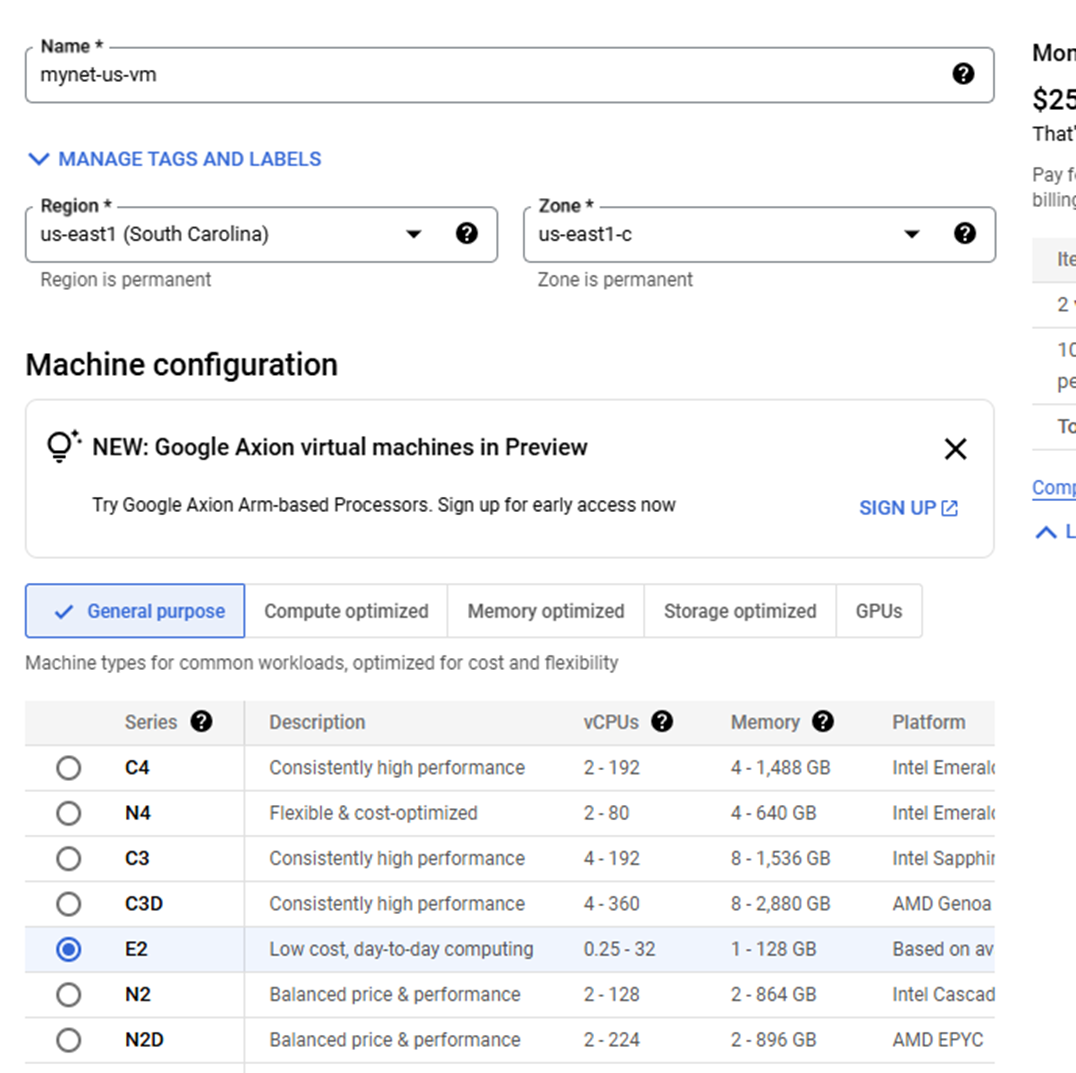

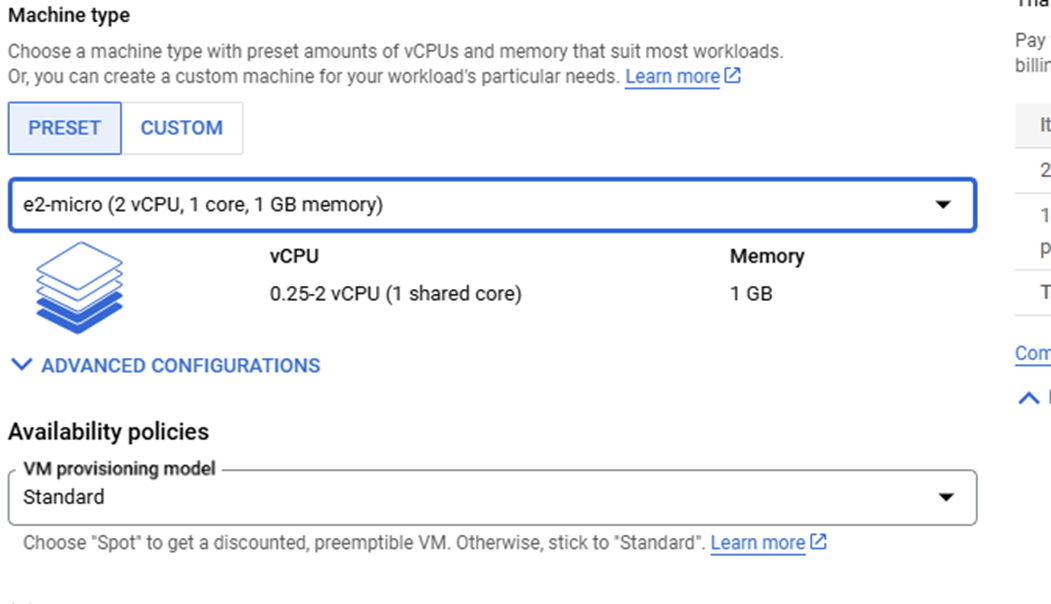

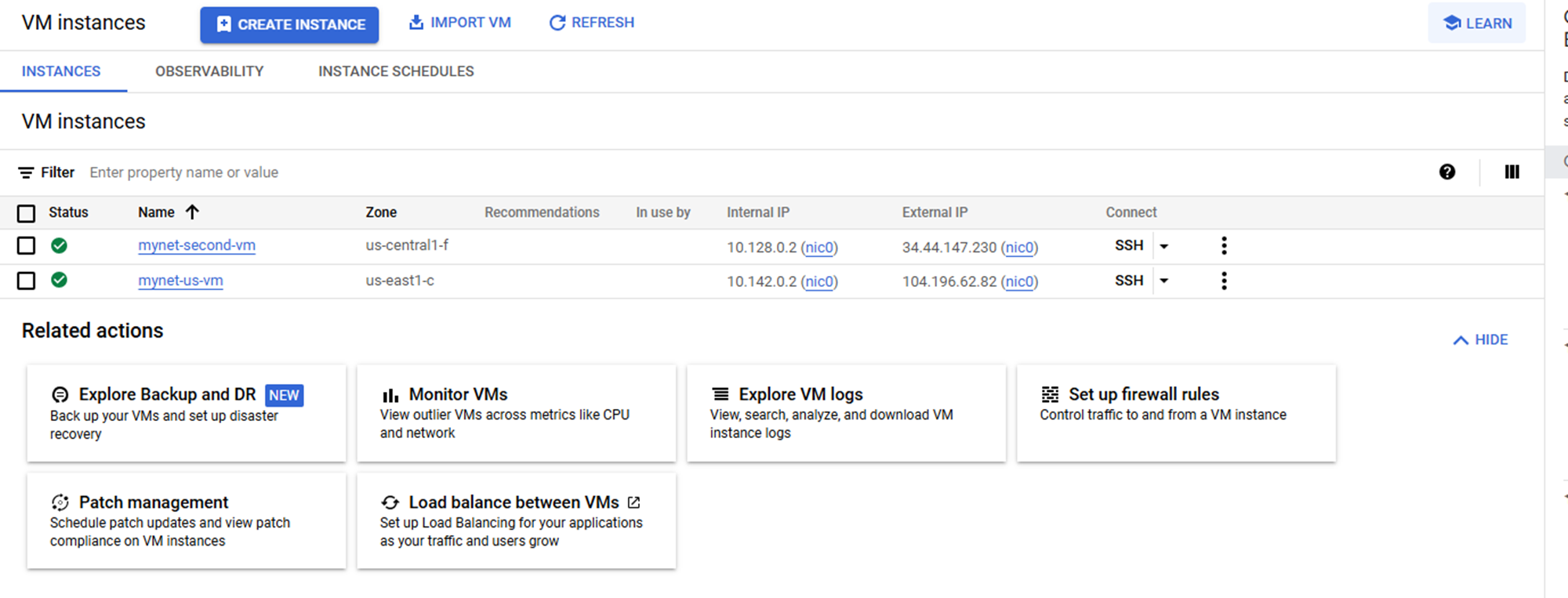

Create a VM instance in us-east1

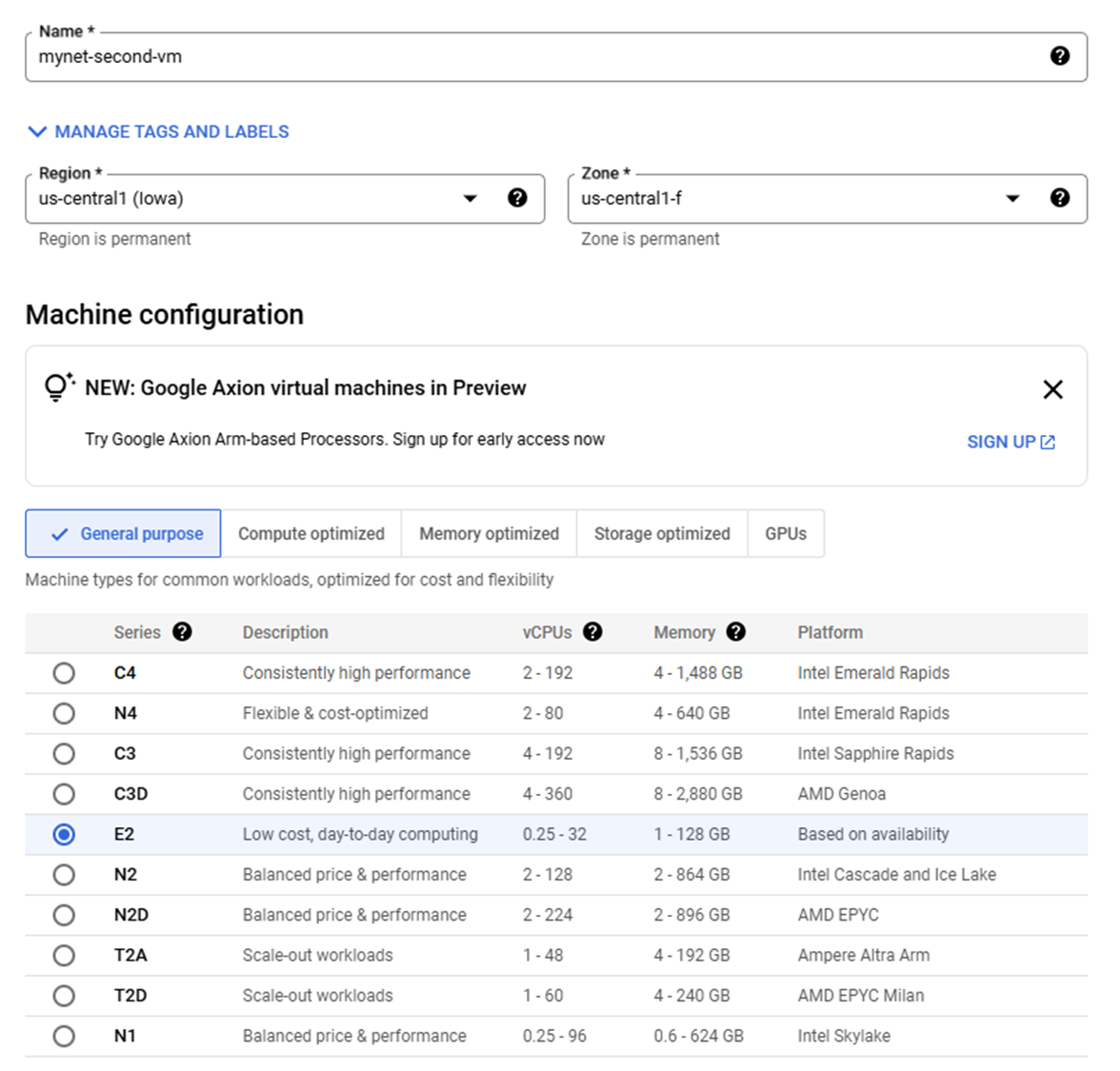

Create a VM instance in us-central1

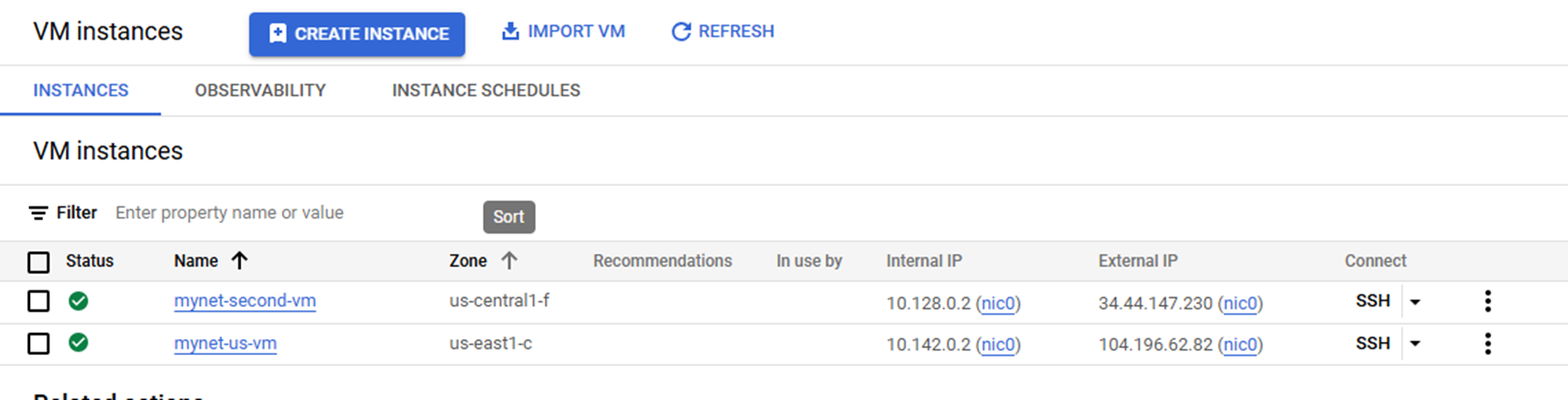

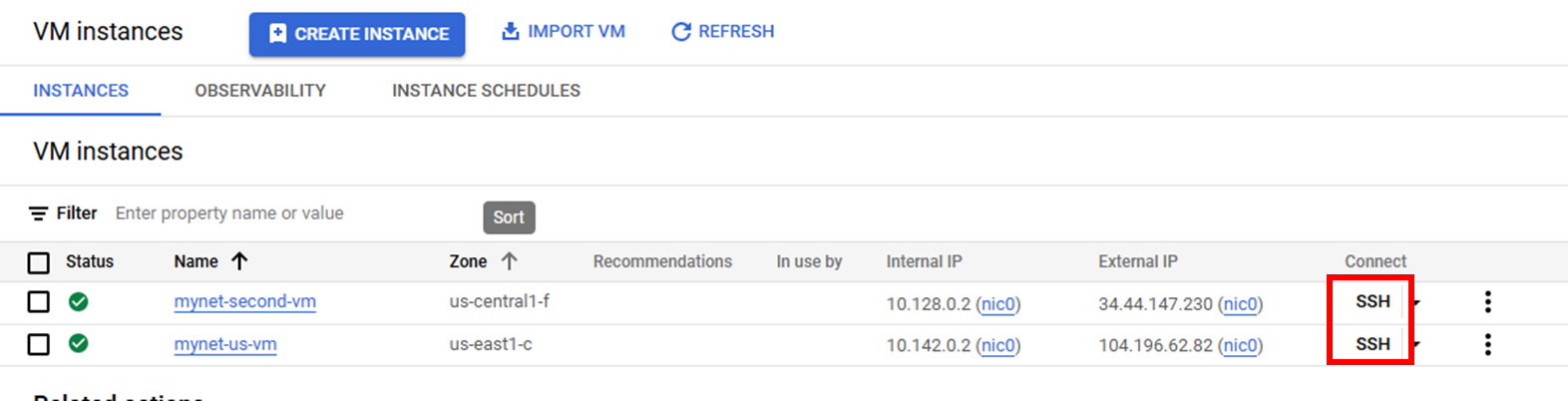

Task 3. Explore the connectivity for VM instances

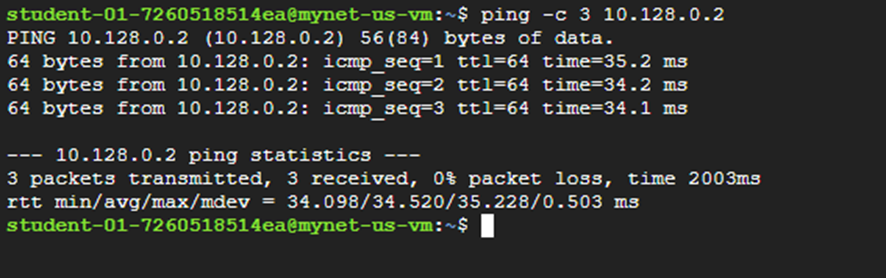

ping -c 3 <Enter mynet-second-vm's internal IP here>

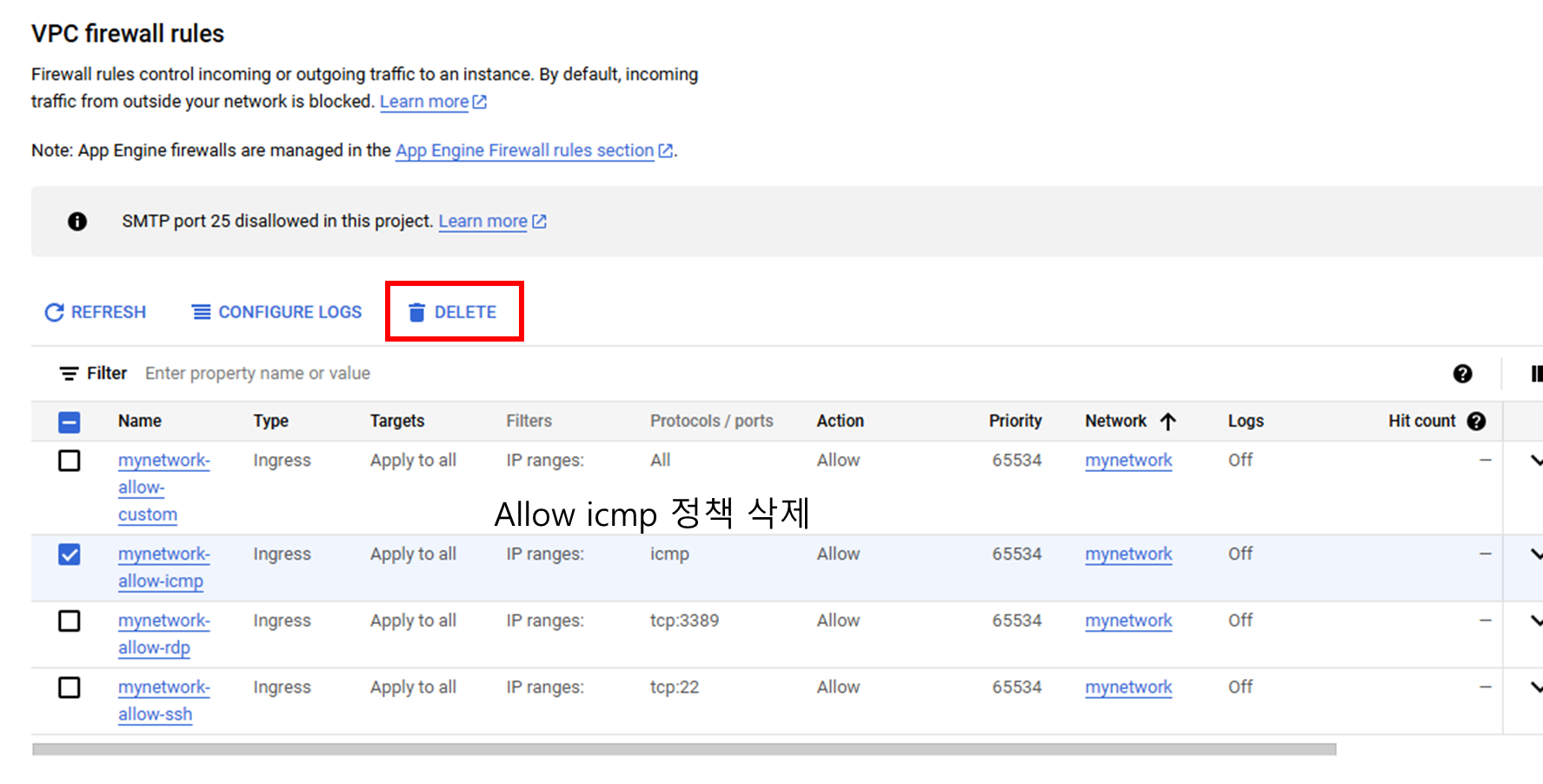

Task 5. Remove the allow-icmp firewall rules

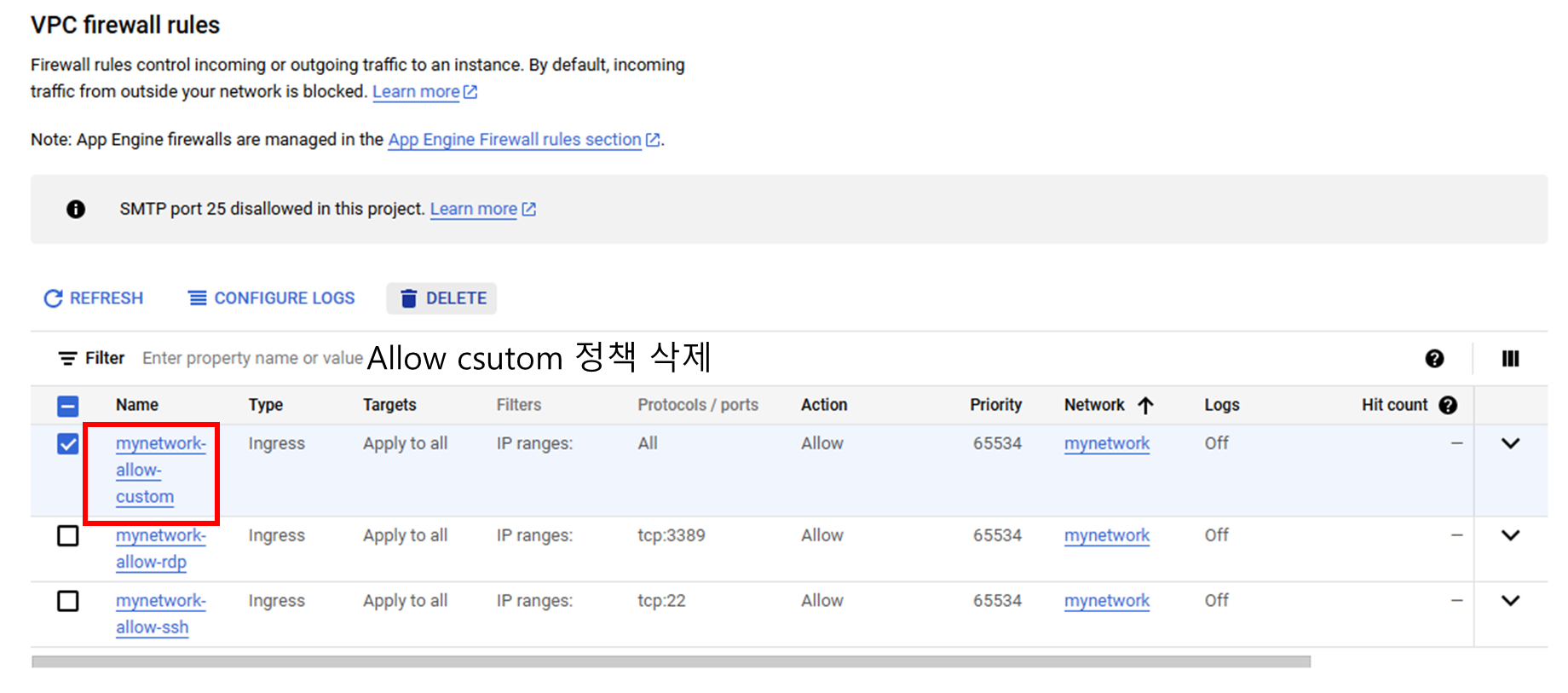

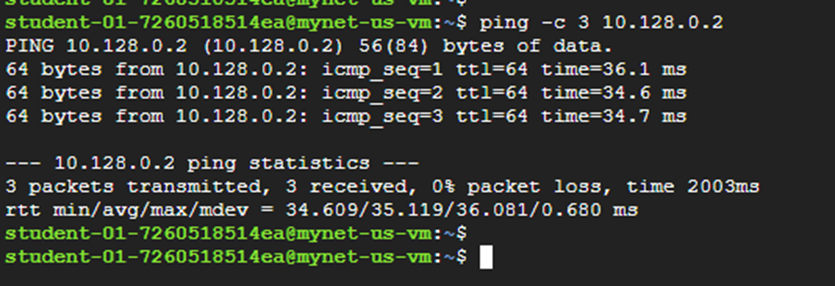

Allow-custom 정책(all protocols allow)이 있어서 ping이 되는 모습

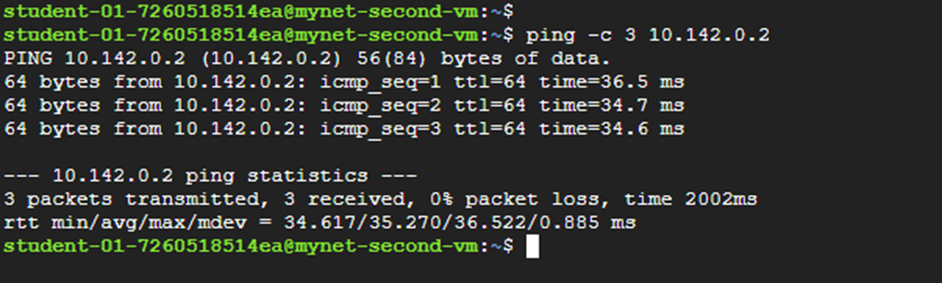

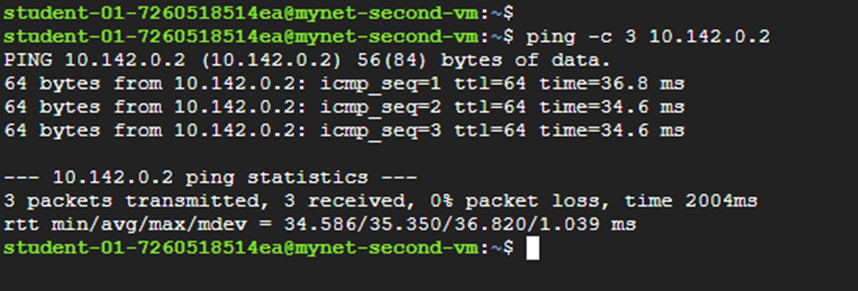

ping -c 3 10.142.0.2

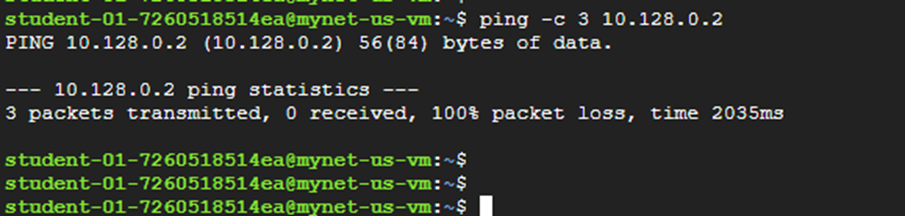

ping -c 3 10.128.0.2

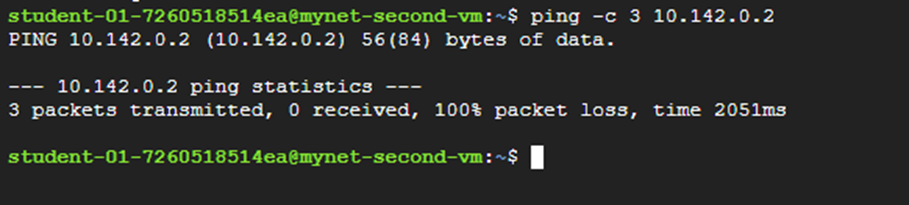

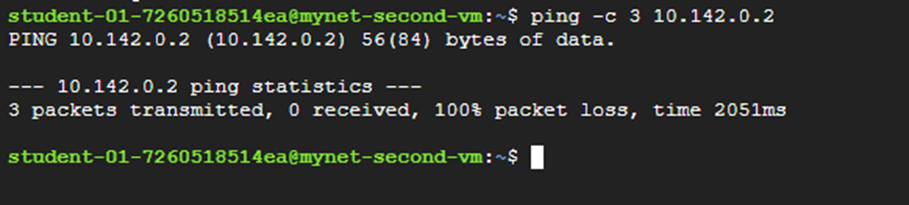

Ping이 되지 않는 모습 확인

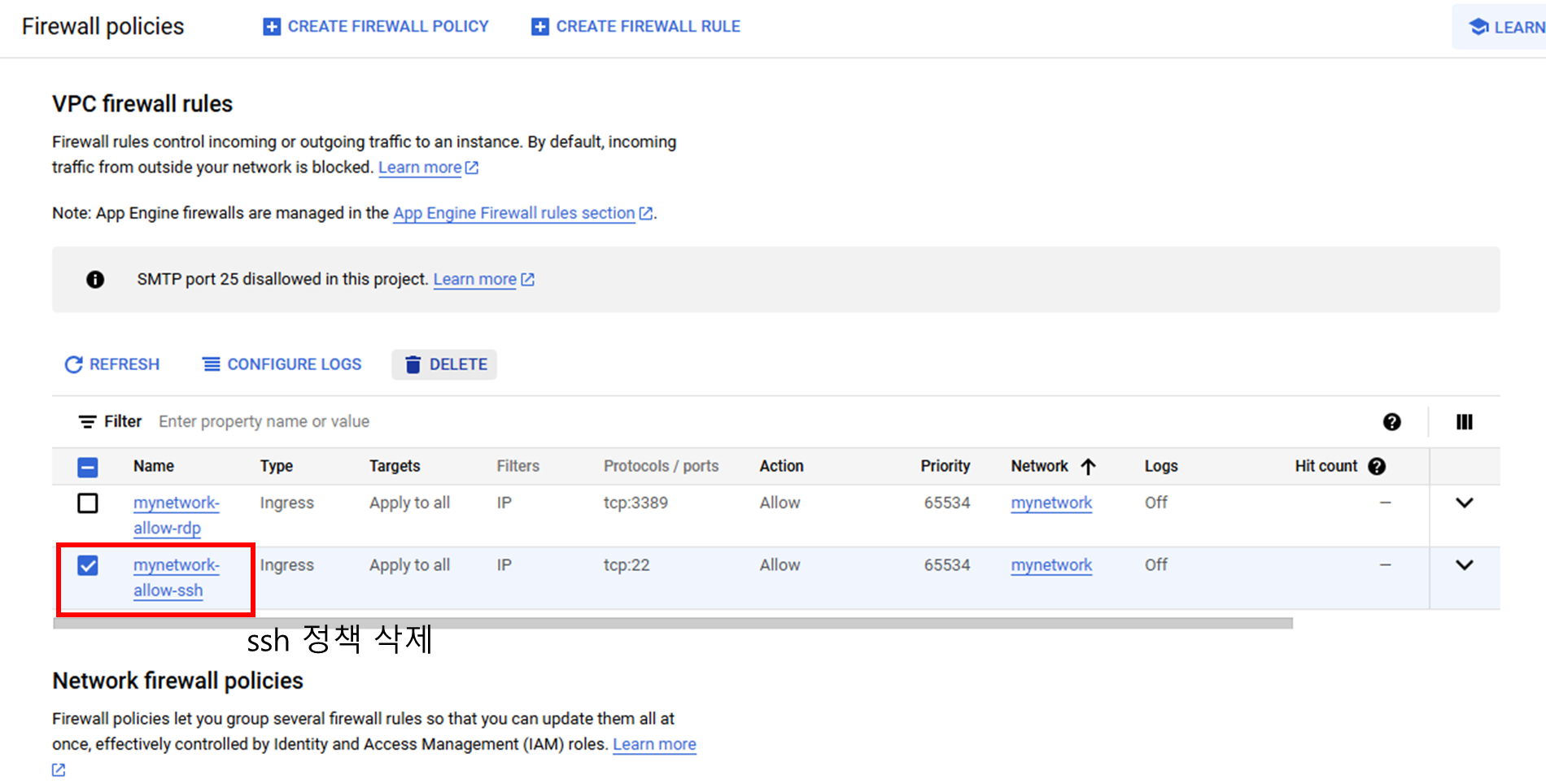

Task 7. Remove the allow-ssh firewall rules

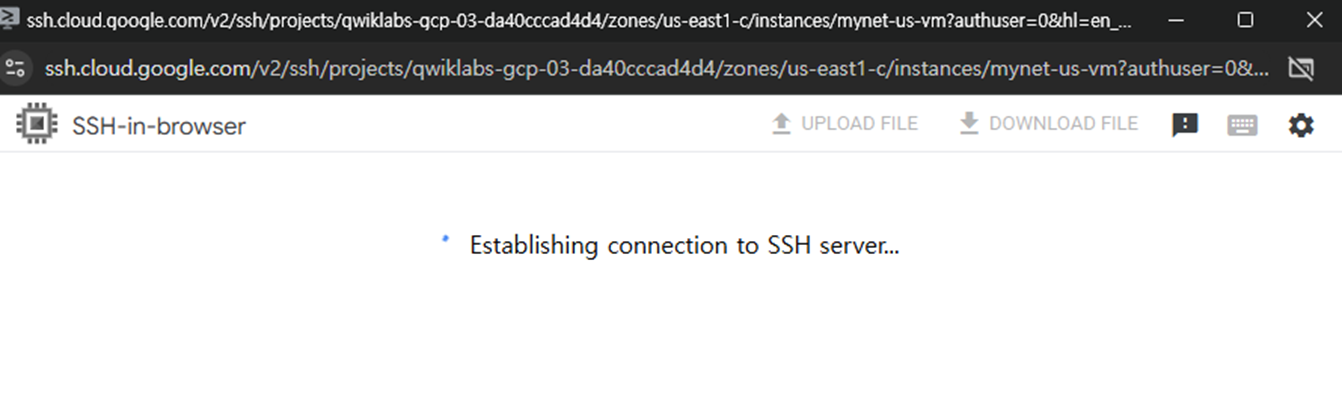

ssh 접속 불가
