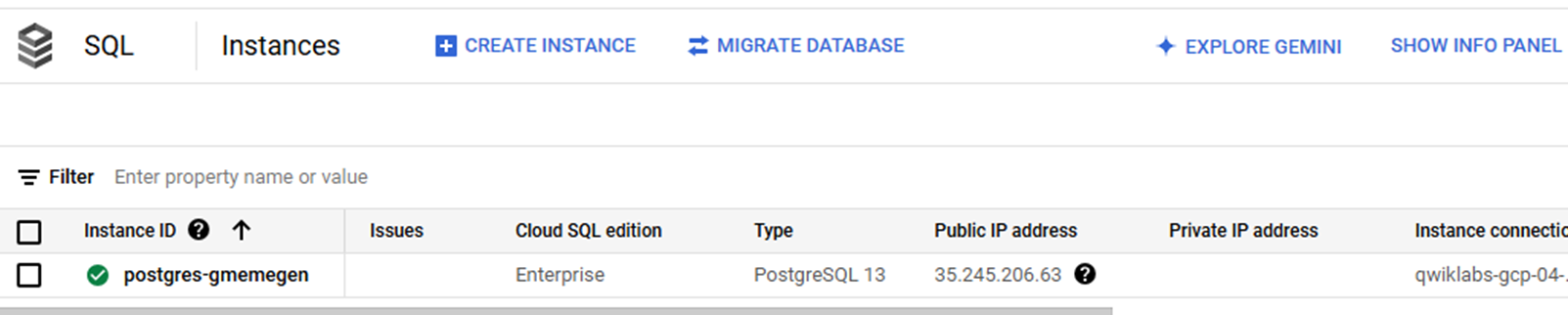

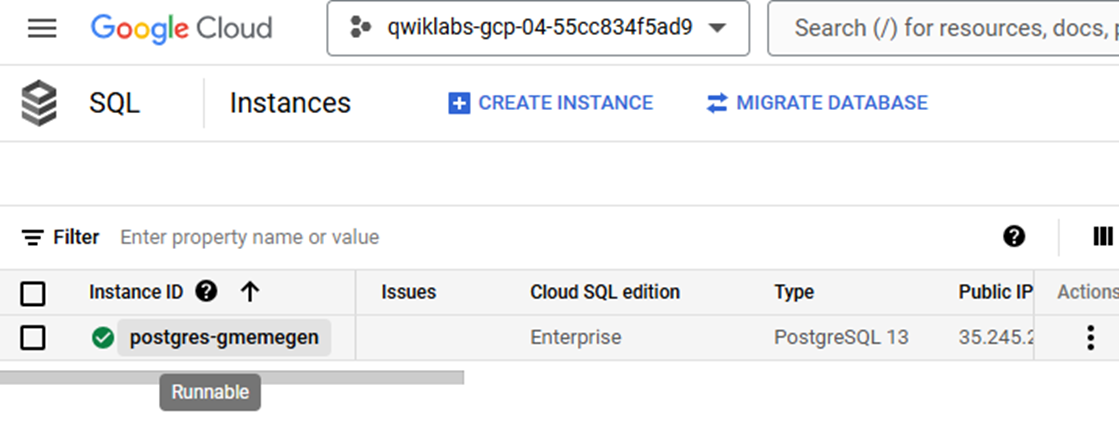

16. Connect an App to a Cloud SQL for PostgreSQL Instance

Cloud SQL for PostgreSQL 인스턴스에 앱 연결

(애플리케이션이 데이터베이스에 쓰고 읽을 수 있는지 확인)



Task 1. Initialize APIs and create a Cloud IAM service account

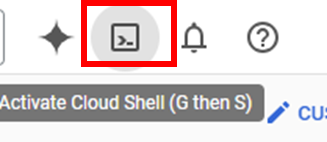

1.In Cloud Shell, run the following command to enable the Artifact Registry API:

gcloud services enable artifactregistry.googleapis.com



Create a Service Account for Cloud SQL

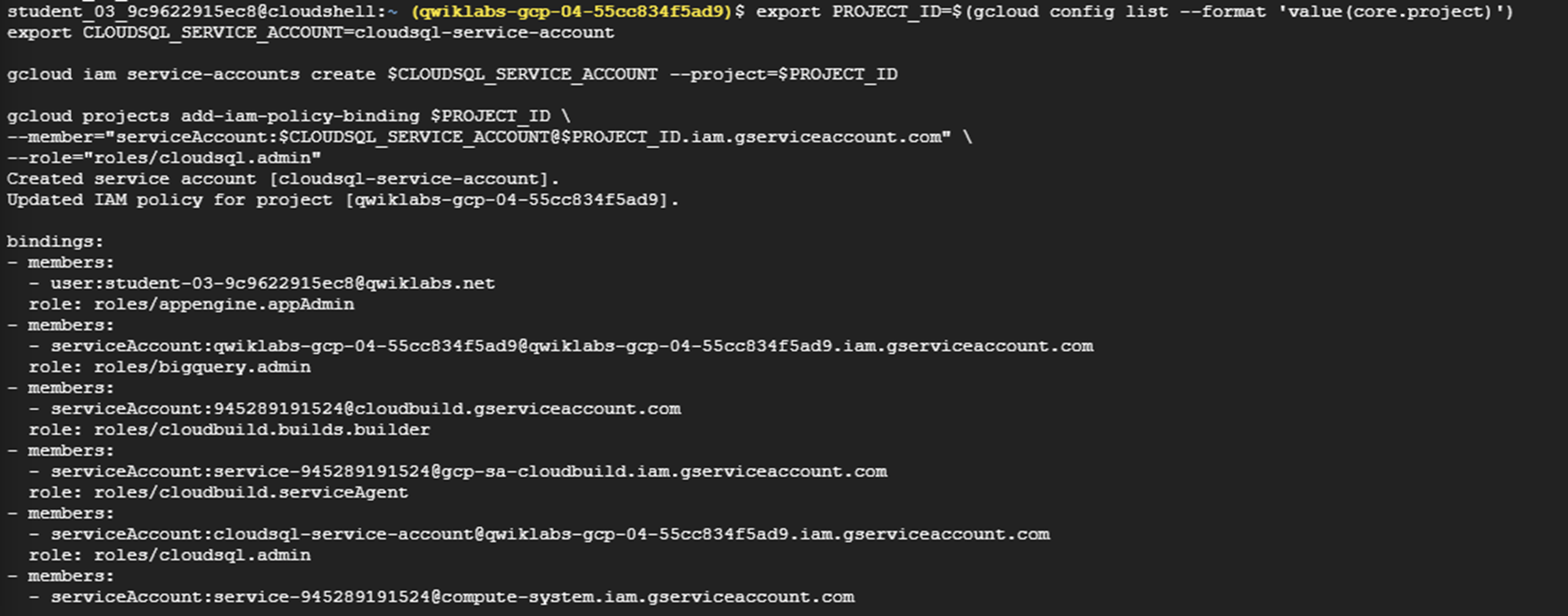

1.In Cloud Shell, create a Service Account and bind it to the Cloud SQL admin role in the lab project:

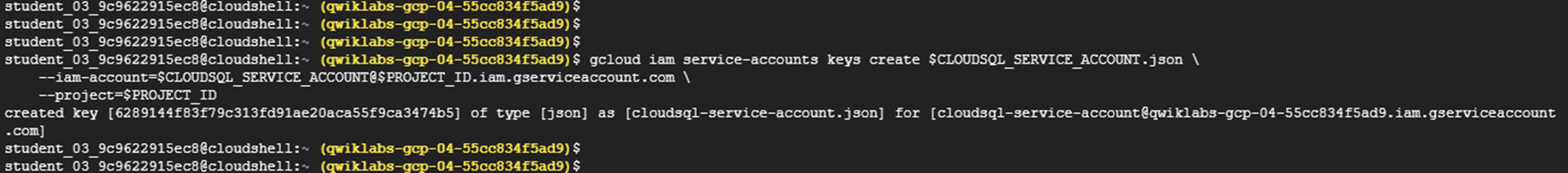

gcloud iam service-accounts keys create $CLOUDSQL_SERVICE_ACCOUNT.json \     --iam-account=$CLOUDSQL_SERVICE_ACCOUNT@$PROJECT_ID.iam.gserviceaccount.com \     --project=$PROJECT_ID



Task 2. Deploy a lightweight GKE application

Create a Kubernetes cluster

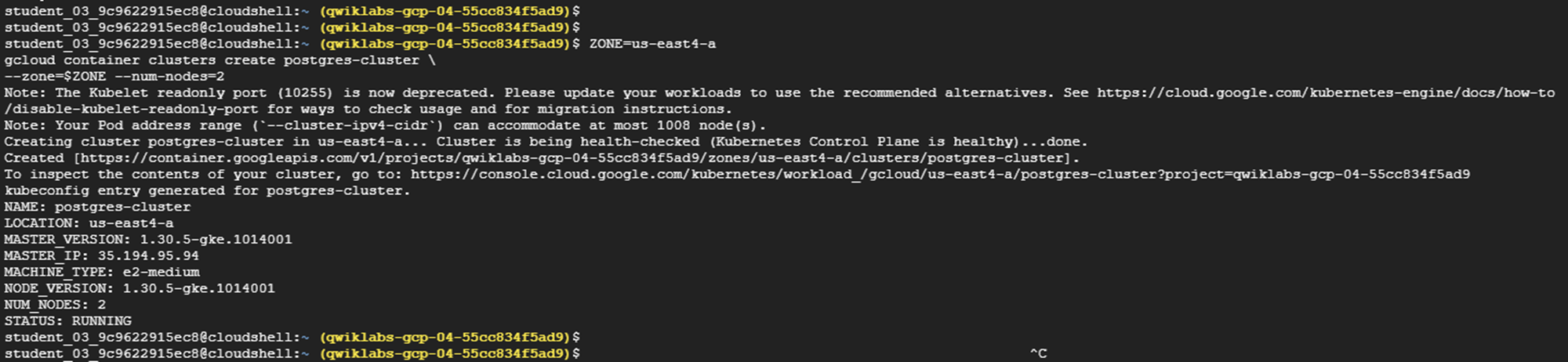

ZONE=us-east4-a gcloud container clusters create postgres-cluster \ --zone=$ZONE --num-nodes=2



Create Kubernetes secrets for database access

kubectl create secret generic cloudsql-instance-credentials \ --from-file=credentials.json=$CLOUDSQL_SERVICE_ACCOUNT.json     kubectl create secret generic cloudsql-db-credentials \ --from-literal=username=postgres \ --from-literal=password=supersecret! \ --from-literal=dbname=gmemegen_db



Download and build the GKE application container

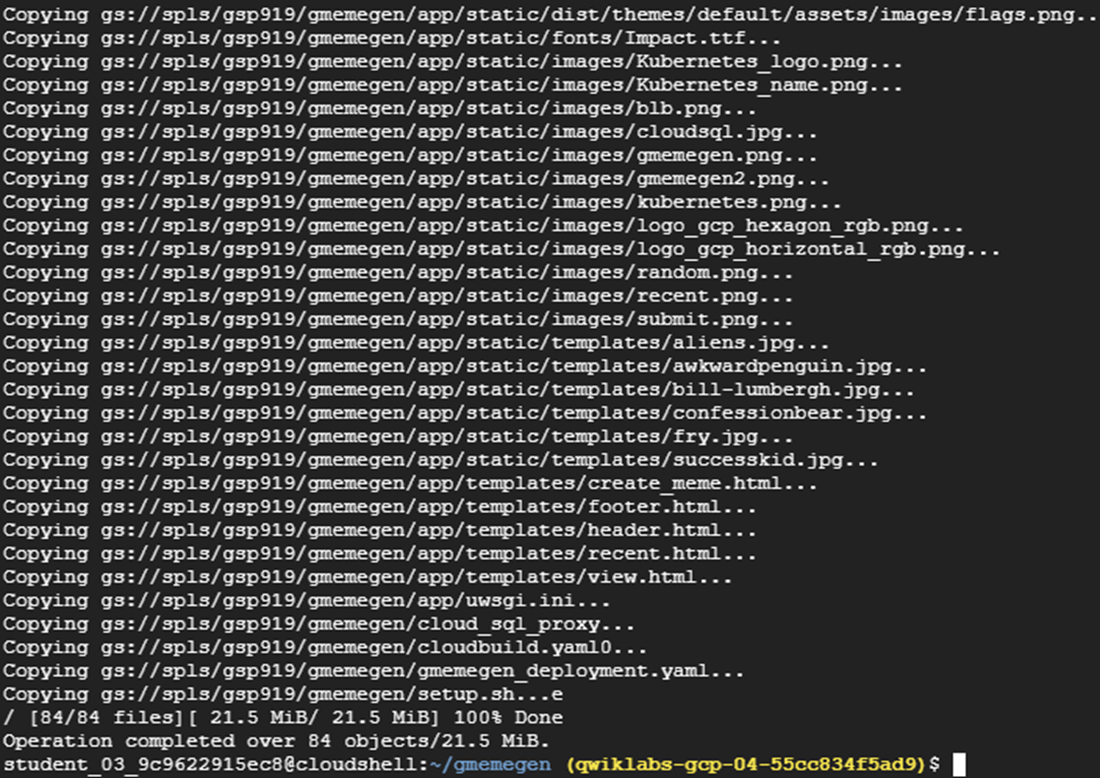

gsutil -m cp -r gs://spls/gsp919/gmemegen . cd gmemegen

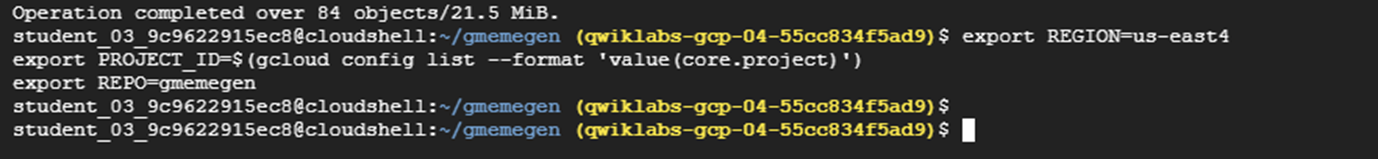

export REGION=us-east4 export PROJECT_ID=$(gcloud config list --format 'value(core.project)') export REPO=gmemegen

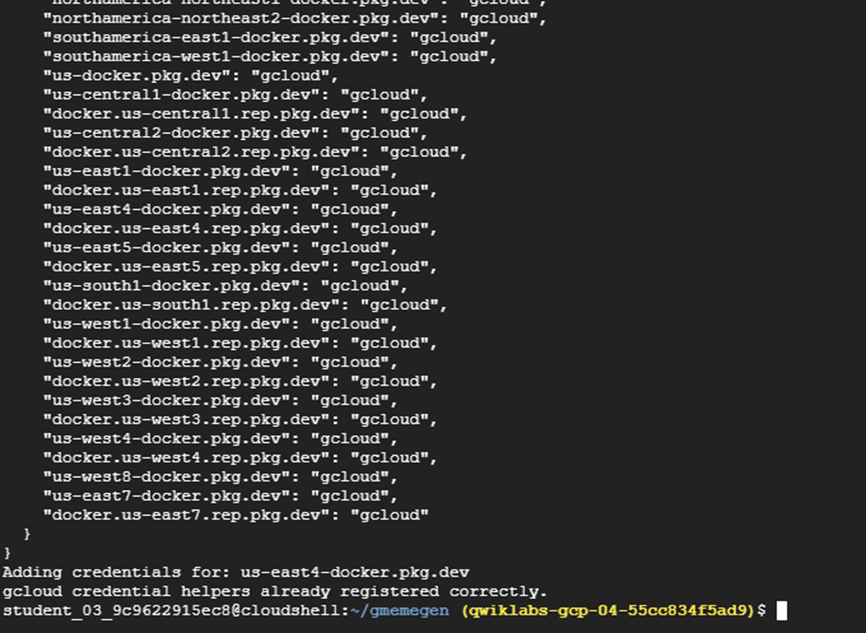

gcloud auth configure-docker ${REGION}-docker.pkg.dev

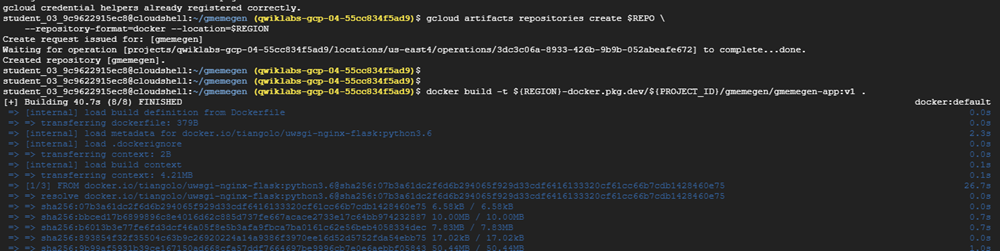

gcloud artifacts repositories create $REPO \     --repository-format=docker --location=$REGION

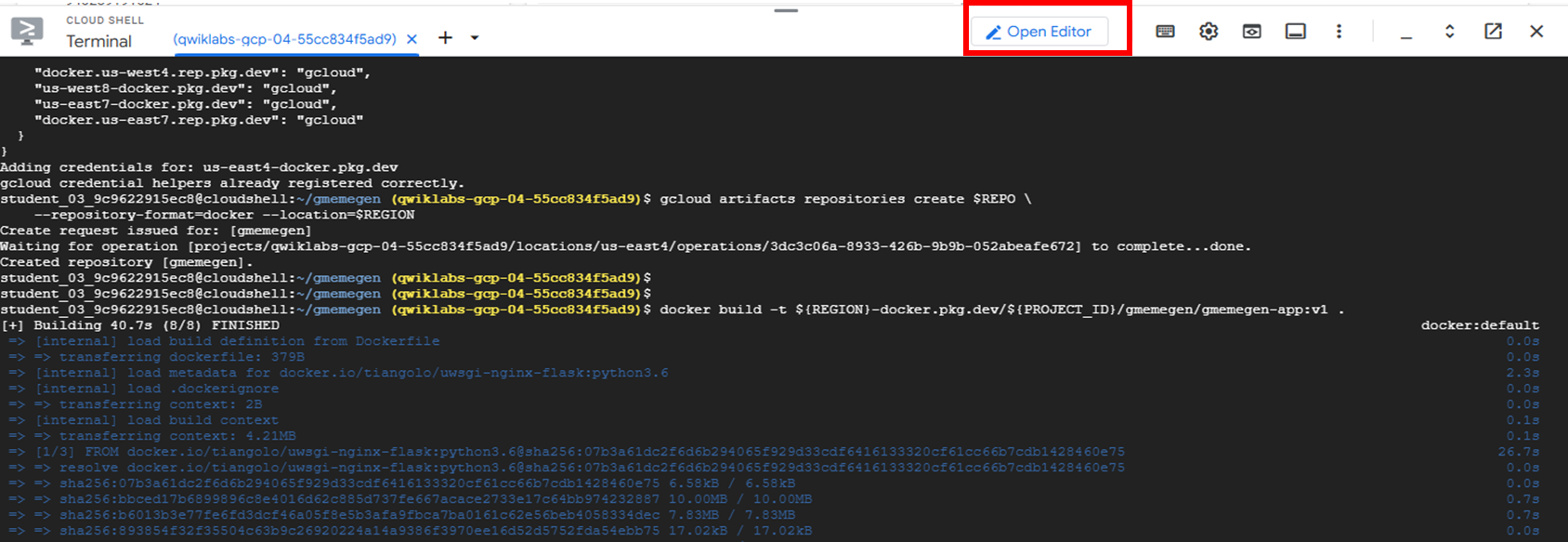

docker build -t ${REGION}-docker.pkg.dev/${PROJECT_ID}/gmemegen/gmemegen-app:v1 .

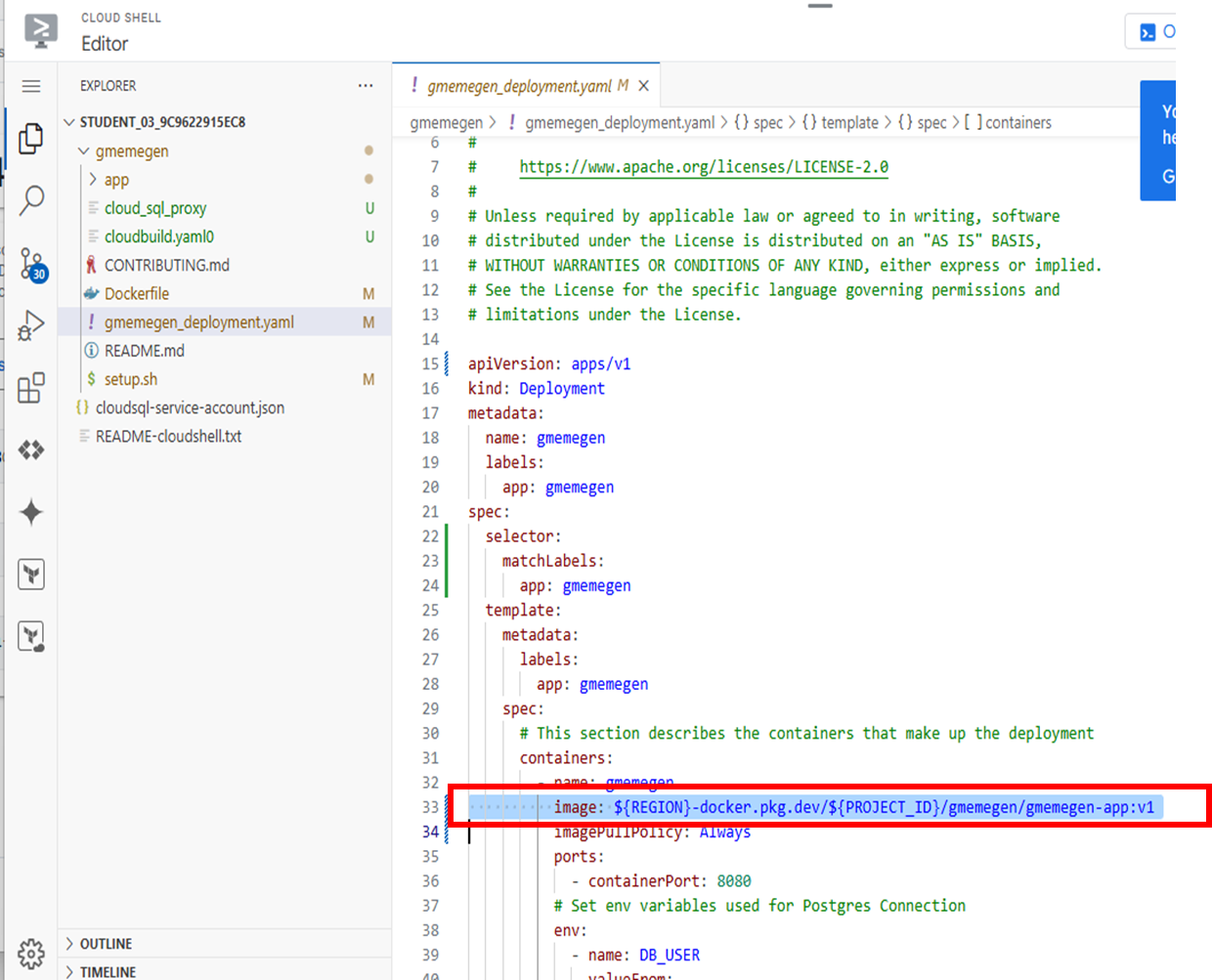

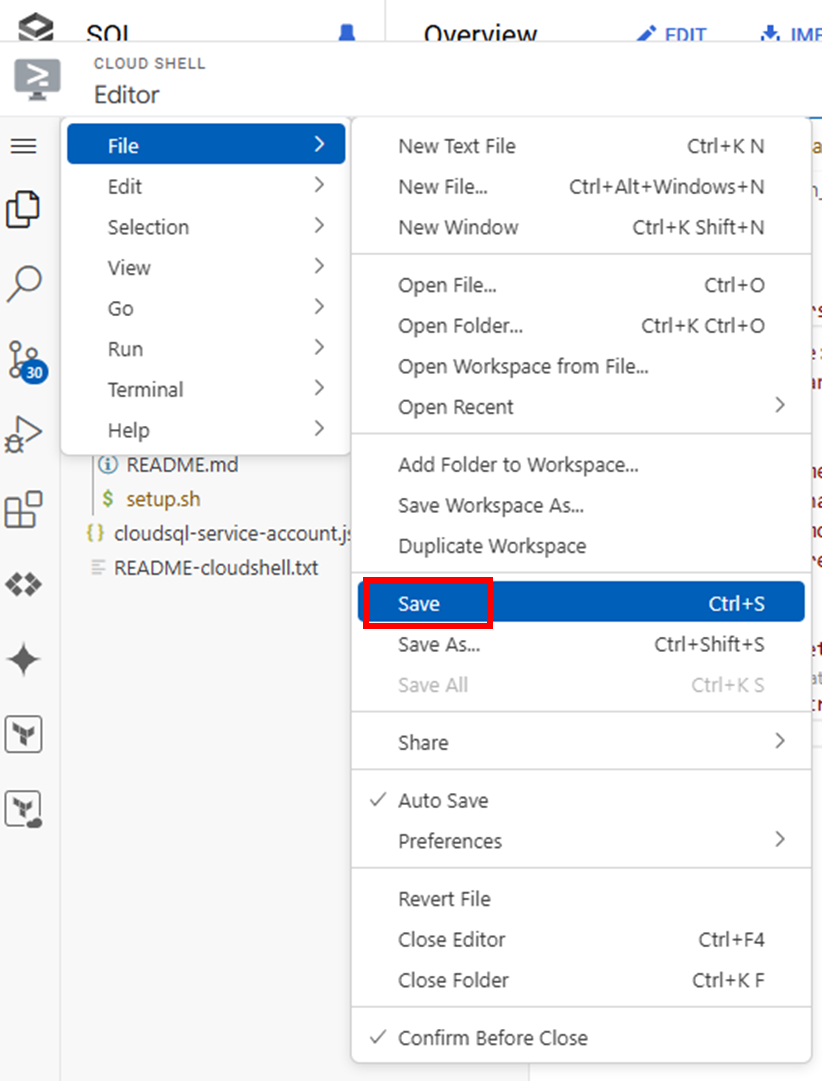

Configure and deploy the GKE application

수정

image: us-east4-docker.pkg.dev/qwiklabs-gcp-04-55cc834f5ad9/gmemegen/gmemegen-app:v1



수정

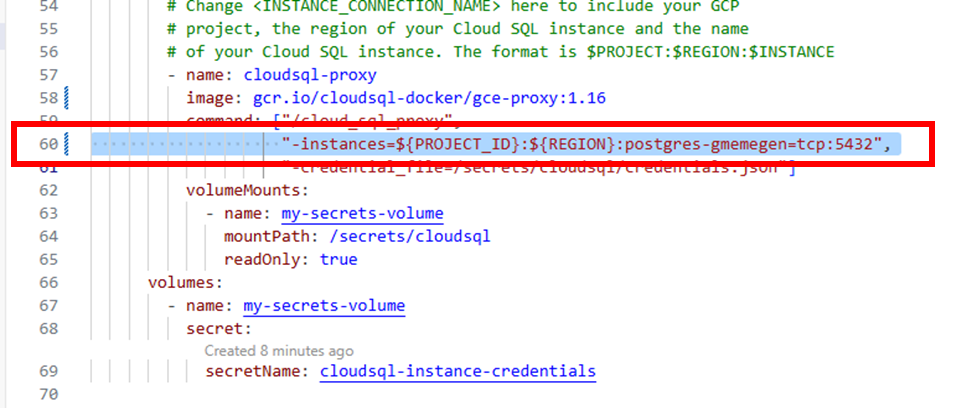

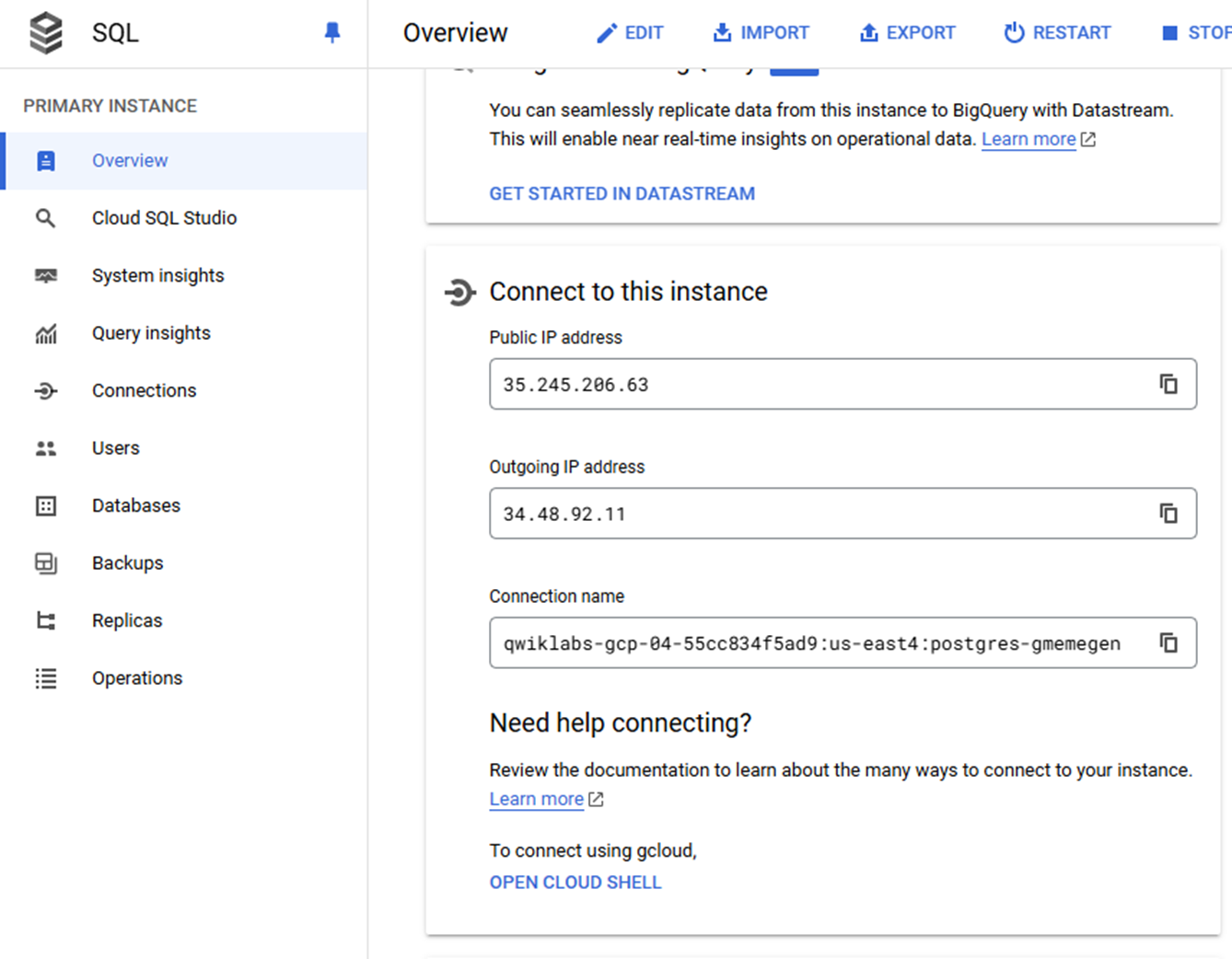

-instances=qwiklabs-gcp-04-55cc834f5ad9:us-east4:postgres-gmemegen=tcp:5432

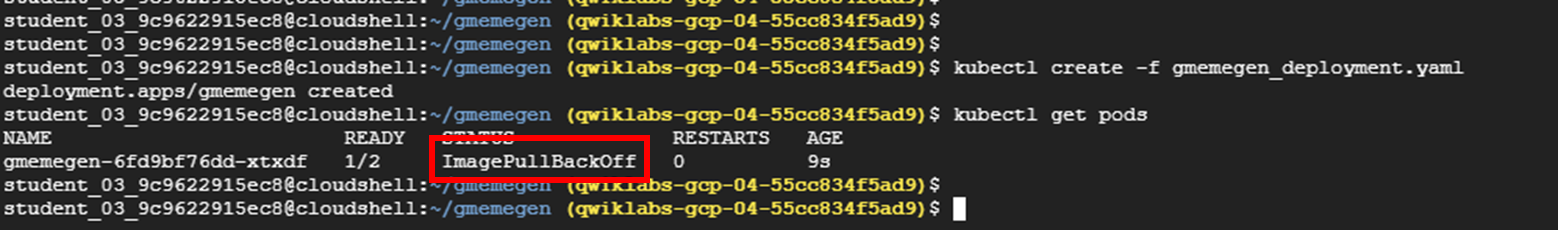

kubectl create -f gmemegen_deployment.yaml

kubectl get pods

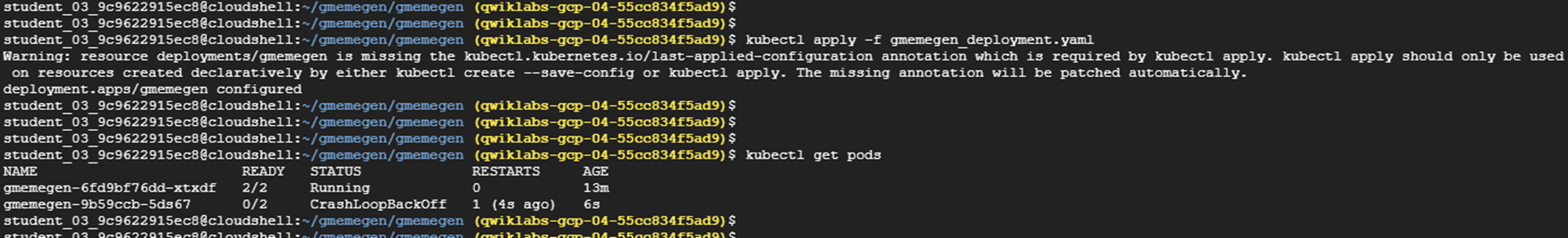

(kubectl apply -f gmemegen_deployment.yaml

오류가 나서 수동으로 다시 적용)



Task 3. Connect the GKE application to an external load balancer



Create a load balancer to make your GKE application accessible from the web

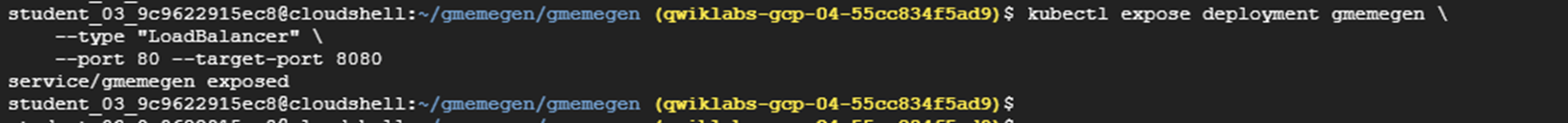

kubectl expose deployment gmemegen \     --type "LoadBalancer" \     --port 80 --target-port 8080





Test the application to generate some data

In this step you will access the gMemegen application from your web browser.

The application has a very simple interface. It launches to the application home page, which displays 6 candidate images for making memes. You can select an image by clicking on it.

The Create Meme page is displayed, where you enter two items of text, to be displayed at the top and bottom of the image. Clicking Submit renders the meme and displays it. The interface provides no navigation from the completed meme page. You will have to use the browser's back button to return to the home page.

There are two other pages, Recent and Random, which display a set of recently generated memes and a random meme, respectively. Generating memes and navigating the UI will generate database activity which you can view in the logs as described below.

Wait for the load balancer to expose an external IP, which you can retrieve as follows:

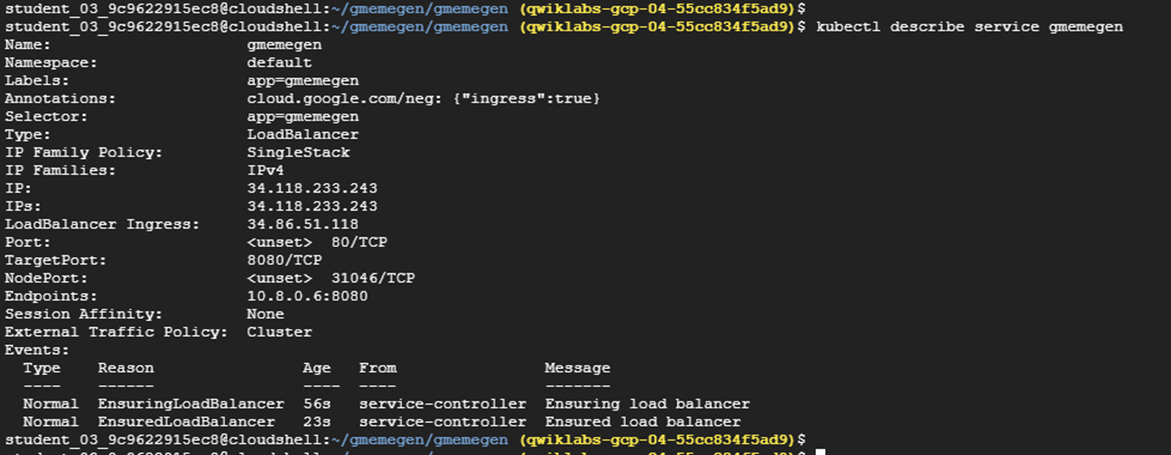

kubectl describe service gmemegen

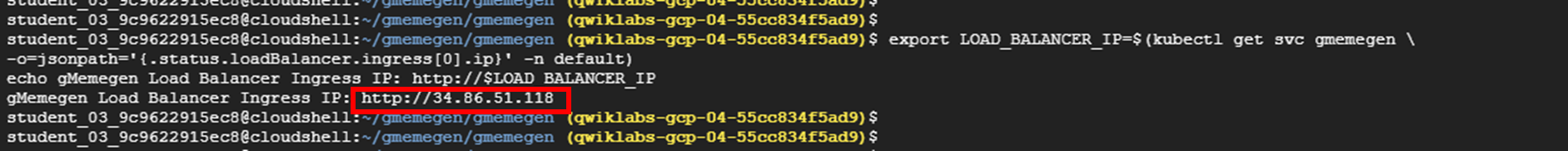

export LOAD_BALANCER_IP=$(kubectl get svc gmemegen \ -o=jsonpath='{.status.loadBalancer.ingress[0].ip}' -n default) echo gMemegen Load Balancer Ingress IP: http://$LOAD_BALANCER_IP

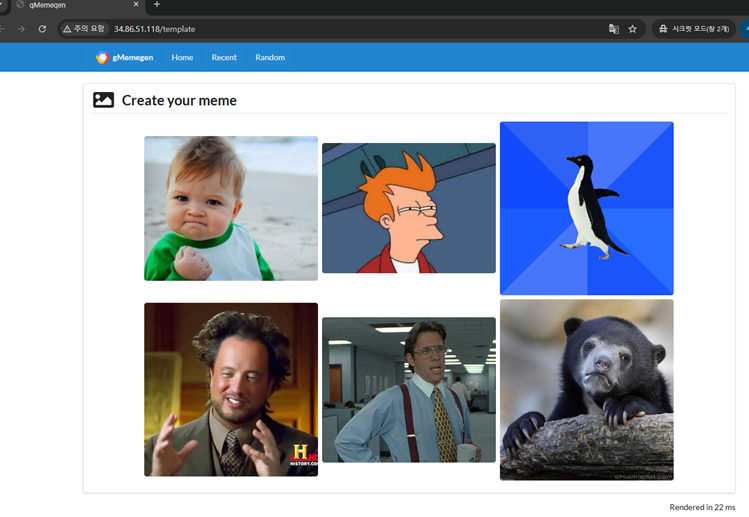

해당 주소의 웹사이트 (밈 모음..인 듯)

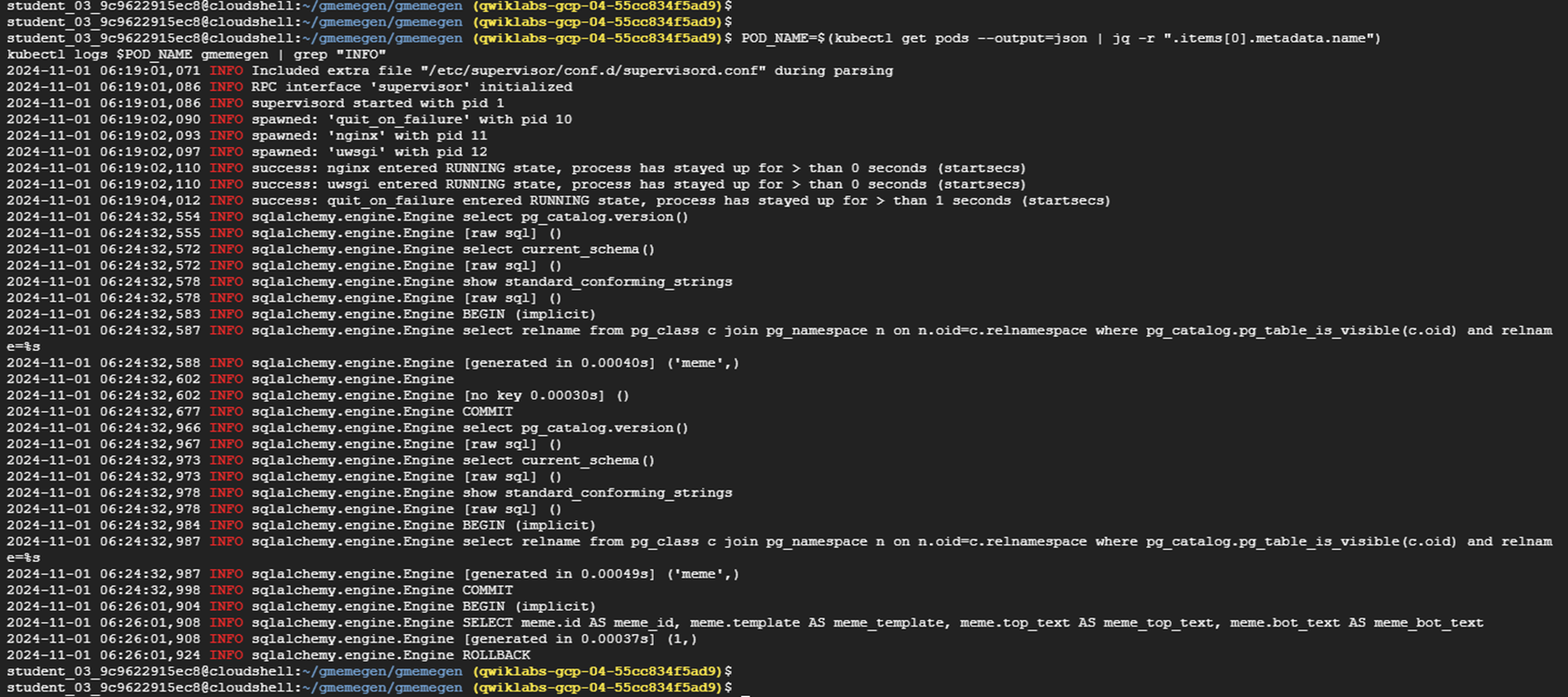

POD_NAME=$(kubectl get pods --output=json | jq -r ".items[0].metadata.name") kubectl logs $POD_NAME gmemegen | grep "INFO"



Task 4. Verify full read/write capabilities of application to database



Connect to the database and query an application table

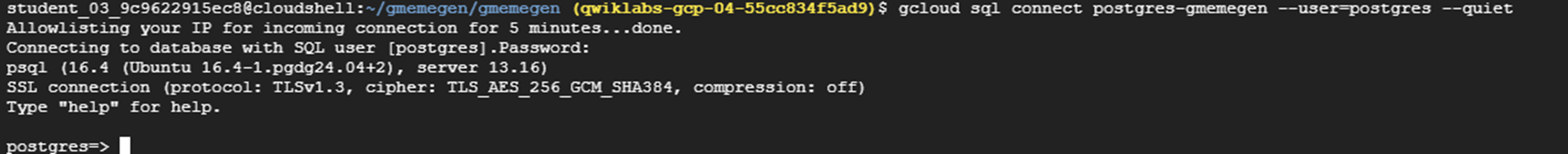

1.Run the auto-populated command in Cloud Shell.

2.When prompted, enter the password: supersecret!

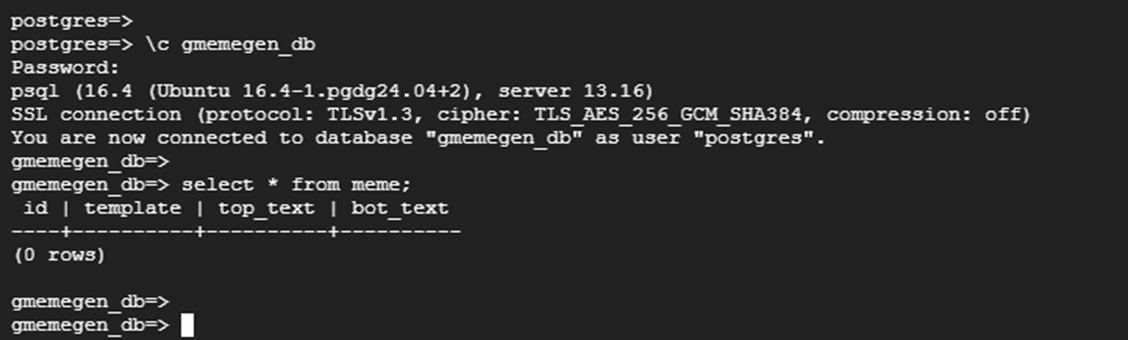

\c gmemegen_db

select * from meme;



참고:  https://www.cloudskillsboost.google/paths/22/course_templates/652/labs/471757?locale=ko
